DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1977 - 1978 |
Harley-Davidson |
Café Racer XLCR |
| 1983 |
Harley-Davidson |
Sportster 1000 XLX |
| 1979 - 1983 |
Harley-Davidson |
Roadster 1000 XLS |
| 1972 - 1979 |
Harley-Davidson |
Sportster 1000 XLCH |
| 1972 - 1983 |
Harley-Davidson |
Sportster 1000 XLH |
| 1958 - 1971 |
Harley-Davidson |
Sportster 900 XLCH |
| 1957 - 1971 |
Harley-Davidson |
Sportster 900 XLH |
| 1983 |
Harley-Davidson |
Sportster 1000 XR |
| 1977 - 1978 |
Harley-Davidson |
Sportster 1000 XLT |
Features

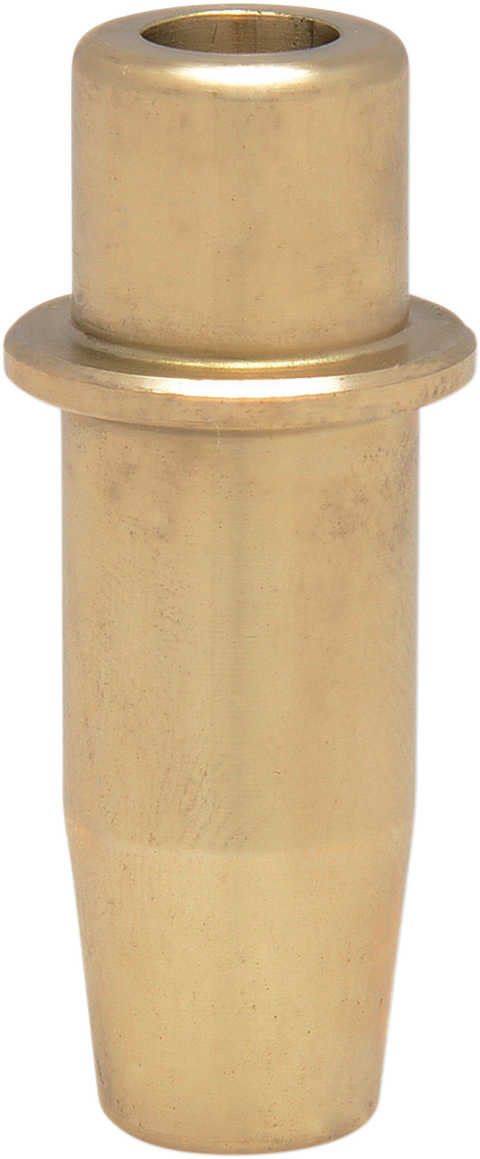

Precision-machined from C630Compatible with no-lead fuel and accept any type of valve-stem materialProvide maximum service with chromed valve stemsFeature a tapered nose design for maximum bearing service and minimal port obstruction; improves flow characteristics2.02" overall length, .560" top diameter, accept OEM-style top hat valve seals (sold separately)Accept OEM lower collarOverall length is 2.40”OEM styleMachined for std. .420” seal and can be used as an intake or exhaust guideMade in the U.S.A.Specs
Color/Finish: Bronze
Inside Diameter: 0.3085"
Outside Diameter: 0.5750"
Base Color: Brown
Material: C630 Bronze
Application: Intake
Product Name: Valve Guide
Riding Style: Street
Size: Oversize (+0.010")
Units: EachApproximate Package Weight & Dimensions
Weight: 0.08
Height: 0.86
Length: 3.81
Width: 3.55
