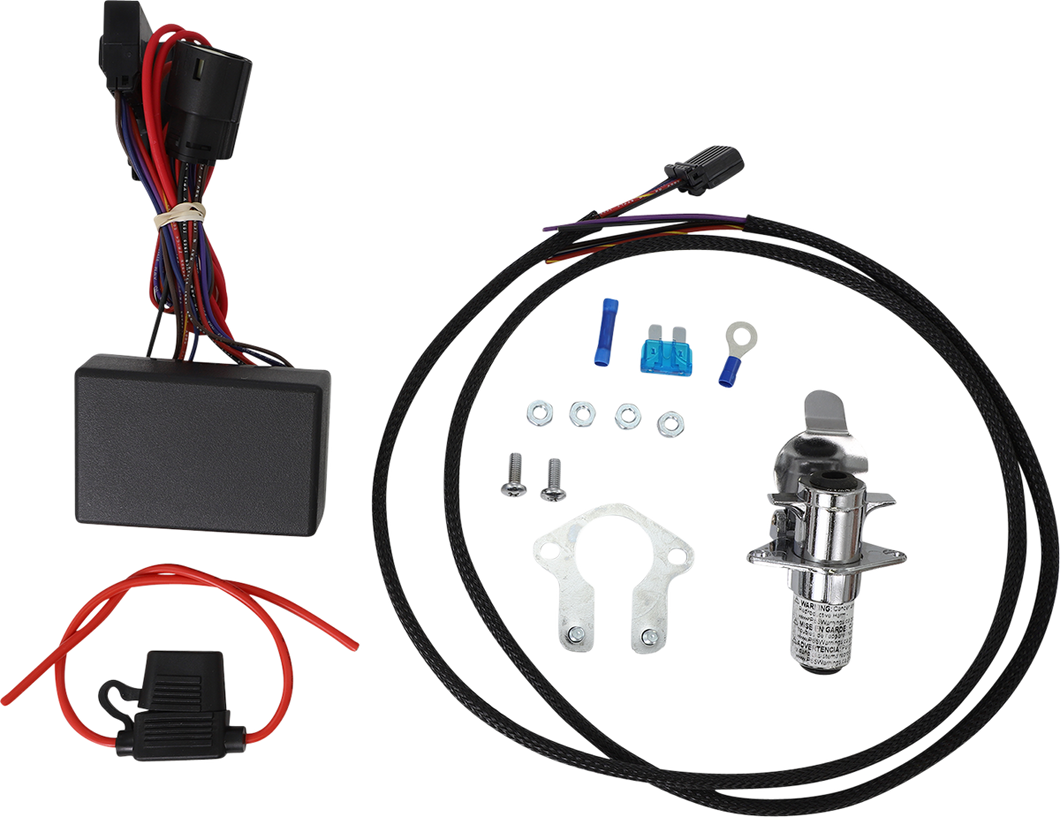

Hi-Load Trailer Harness - FLHX/R

3902-0084

Regular price $154.95

DESCRIPTION

Fitments

Years	Make	Model
2010 - 2013	Harley-Davidson	Street Glide EFI FLHX
2010 - 2013	Harley-Davidson	Road Glide Custom FLTRX
2013	Harley-Davidson	Road Glide Ultra FLTRU
2013	Harley-Davidson	CVO Electra Glide Ultra Classic FLHTCUSE8
2013	Harley-Davidson	Road King Classic FLHRC
2013	Harley-Davidson	Road King Classic EFI FLHRC

Features

To be used with current Khrome Werks trailer hitches

Plug-and-play 56" wiring harness features an isolator module with a fused, separate circuit from battery positive to power the trailer lighting; works through built-in relays and prevents overloading of factory-lighting circuit

5-pin, die-cast, automotive style connector

Mounts using mounting bracket that bolts directly to the safety chain bracket on current production Khrome Werks trailer hitches

An isolator is a must for '09 and later Harleys pulling trailers with conventional incandescent lighting (higher amperage requirements than trailers with LED lighting)

Made in the U.S.A.

AMP Multilock plugs

15 amp fuse/holder, butt connector and ring terminal

Specs

Riding Style: Street

Type: Trailer Wiring

Units: Each

Style: Plug-N-Play

Product Name: Sub-Harness

Approximate Package Weight & Dimensions

Weight: 1.39

Height: 3.46

Length: 9.13

Width: 6.45
