BELT DRIVES LTD.

1-5/8" Belt Drive - 4-Speed

1120-0250

Regular price $1,041.95

DESCRIPTION

Fitments

Years	Make	Model
1984	Harley-Davidson	Electra Glide Special FLHX
1982	Harley-Davidson	Electra Glide Classic FLH
1980 - 1982	Harley-Davidson	Sturgis FXB
1983 - 1984	Harley-Davidson	Low Rider FXSB
1984	Harley-Davidson	Wide Glide FXWG

Features

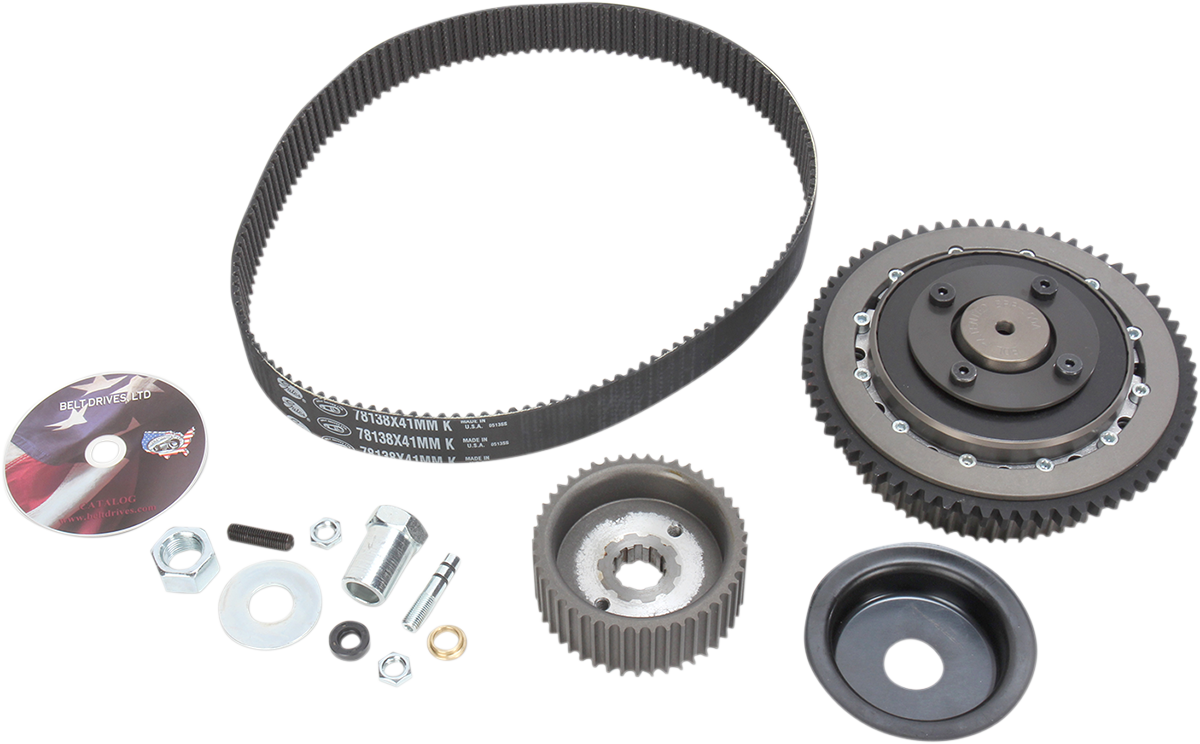

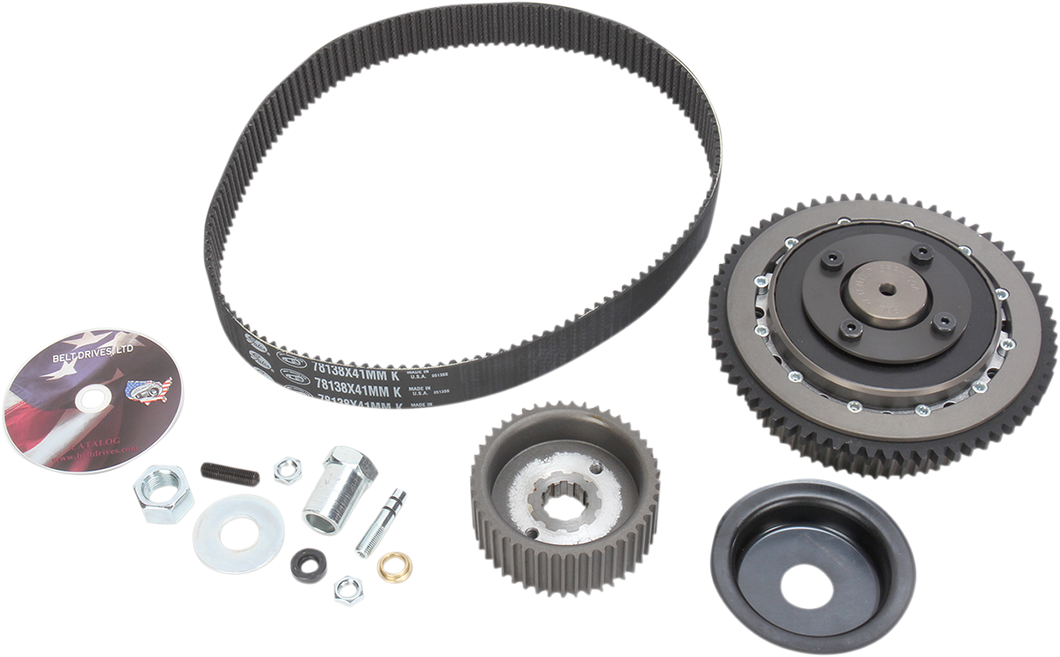

1-1/2" and 1-5/8" kits include front pulley, belt, clutch hub, clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates)

Direct bolt-in applications

3" electric start kit includes front pulley, belt, clutch hub and clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates), 6061 T-6 billet motor plate, outside guard and polished pulley cover

All systems come with the Quiet Clutch system

Precision-machined, polished aluminum pressure plate uses nine springs and shoulder bolts to ensure even spring pressure (included in kit)

Rear pulley has a 40mm, double-row bearing with an inner stress-proof steel clutch hub to support the clutch

Made in the U.S.A.

Specs

Material: 6061 T-6 Billet Aluminum

Riding Style: Street

Units: Each

Material: Kevlar

Product Name: Belt Drive Kit

Width: 1-5/8"

Material: Steel

Approximate Package Weight & Dimensions

Weight: 15.75

Height: 5.17

Length: 17.32

Width: 11.26
