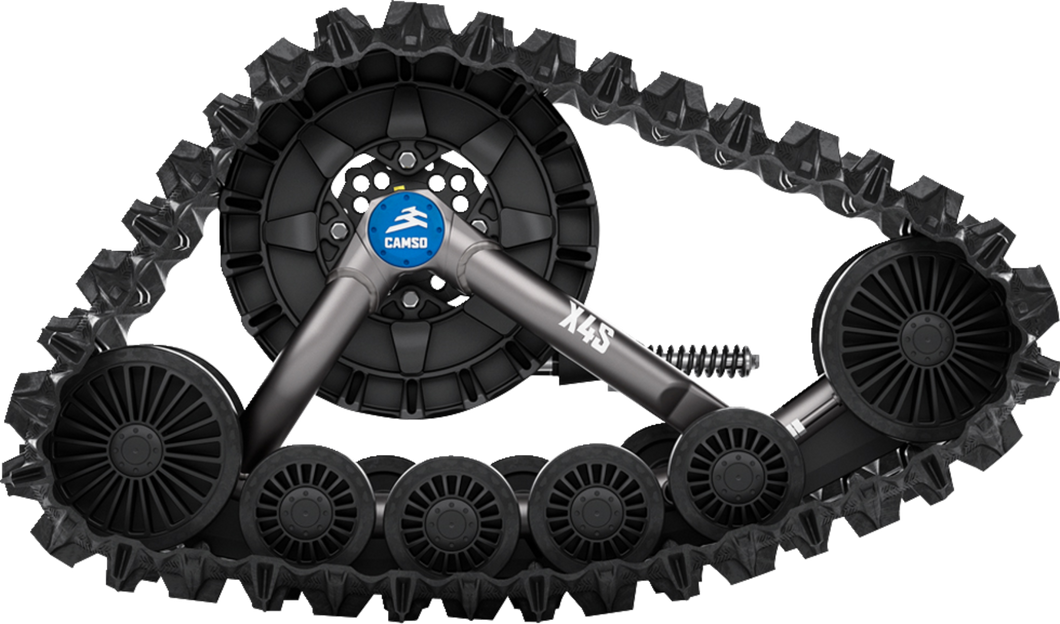

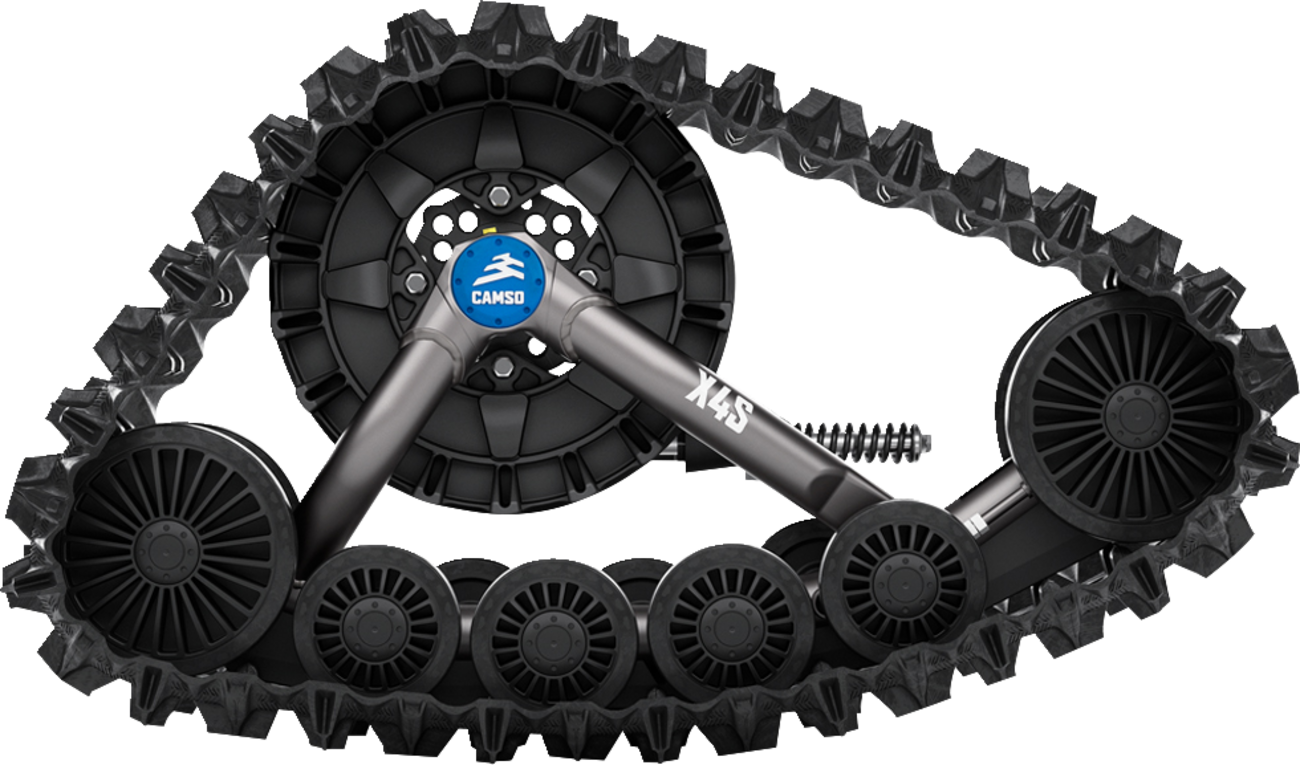

X4S Track System - Under Carriage Kit

CAMSO

X4S Track System - Under Carriage Kit

4510-1425

$4,899.00

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2016 - 2023 Polaris Sportsman 450 H.O. 4x4
2016 - 2023 Polaris Sportsman 450 H.O. EPS 4x4
2006 - 2007 Polaris Sportsman 450 4x4
2017 - 2023 Polaris Sportsman 450 H.O. Utility Edition 4x4
2017 - 2019 Polaris Ace 500 4x4
2006 - 2009 Polaris Ranger 500 EFI 4x4
2008 - 2009 Polaris Sportsman 500 H.O. EFI 4x4
2006 - 2009 Polaris Sportsman X2 500
2010 - 2013 Polaris Sportsman 550 EFI 4x4
2010 - 2014 Polaris Sportsman 550 EPS EFI 4x4
2009 Polaris Sportsman XP 550 EPS EFI 4x4
2010 - 2014 Polaris Sportsman Touring 550 EPS 4x4
2010 - 2013 Polaris Sportsman X2 550 4x4
2015 - 2023 Polaris Ranger 570 (Full-Size) 4x4
2014 - 2021 Polaris Ranger 570 (Mid-Size) EFI
2015 - 2020 Polaris Ranger 570 (Mid-Size) EPS
2016 Polaris Ranger XP 570 4x4
2012 - 2021 Polaris RZR 570 4x4
2015 Polaris RZR Trail 570 EPS 4x4
2014 - 2023 Polaris Sportsman 570 EFI 4x4
2014 - 2023 Polaris Sportsman 570 EPS 4x4
2021 - 2023 Polaris Sportsman 570 Premium 4x4
2017 - 2022 Polaris Sportsman 570 Utility Edition EPS 4x4
2014 - 2023 Polaris Sportsman Touring 570 4x4
2015 - 2023 Polaris Sportsman Touring 570 EPS 4x4
2003 - 2005 Polaris Sportsman 600 Twin 4x4
2002 - 2004 Polaris Ranger 700 Commercial EFI 4x4
2002 - 2006 Polaris Sportsman 700 Twin
2002 - 2007 Polaris Ranger 500 4x4
2004 - 2013 Polaris Sportsman 500 H.O. 4x4
2014 Polaris Sportsman X2 550 EPS 4x4
2002 Polaris Magnum 500 4x4 RMK
2010 - 2013 Polaris Sportsman Touring 500 H.O.
2021 Polaris Ranger 570 Premium 4x4
2021 - 2022 Polaris RZR Trail 570 4x4
2015 - 2017 Polaris Ace 570 4x4
2005 - 2006 Polaris Sportsman 700 MV
2009 Polaris Sportsman XP 550 EFI 4x4
2021 - 2023 Polaris Sportsman 570 Trail 4x4
2021 - 2022 Polaris Sportsman 570 Trail Ultimate 4x4
2021 Polaris Sportsman 570 Utility HD LE 4x4
2015 Polaris Ace 570 SP
2008 Polaris Sportsman X2 700
2022 Polaris Sportsman 570 Utility HD 4x4

Features

  • Double bearing bolted on wheels for easier serviceability
  • Idler and mid-roller wheels
  • Increased width (26 mm) provides better track support
  • New geometry of solid steel frame provides better front steering and handing
  • Standard and replaceable sealed bearings for economic maintenance
  • The new Camso X4S is the next generation of track system that provides the ultimate versatility, stability and handling on any terrain all year-round
  • This X4S undercarriage track kit includes 4 tracks

    • Specs

  • Front Ground Clearance: 39 cm (15-3/8")
  • Front Height: 23-13/16"
  • Front Height: 60.45 cm
  • Front Track Length: 93-3/8"
  • Front Track Width: 11-1/2"
  • Front Track Width: 29.2 cm
  • Product Name: Undercarriage
  • Rear Track Width: 31.8 cm
  • Front Height: 60,45 cm (23-13/16")
  • Front Track Length: 237,2 cm (93-3/8")
  • Front Track Length: 237.2 cm
  • Rear Height: 23-3/16"
  • Rear Track Width: 12-1/2"
  • Riding Style: ATV
  • Tooth Count: 15-18
  • Units: Kit
  • Ground Surface: 1,30 m² (2000 square inch)
  • Model: UTV X4S
  • Rear Ground Clearance: 39 cm (15-3/8")
  • Rear Height: 58,93 cm (23-3/16")
  • Rear Height: 58.93 cm
  • Rear Track Length: 250,2 cm (98-1/2")
  • Rear Track Length: 98-1/2"
  • Rear Track Length: 250.2 cm
  • Riding Style: UTV
  • Type: Track System
  • Front Track Width: 29,2 cm (11-1/2")
  • Rear Track Width: 31,8 cm (12-1/2")

    • Approximate Package Weight & Dimensions

  • Weight: 0.01
  • Height: 0.1
  • Length: 0.1
  • Width: 0.1
