DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1997 - 1999 |
Yamaha |
Mountain Max 600 |
| 1994 - 1998 |
Yamaha |
V-Max 600 SX |
| 1994 - 1998 |
Yamaha |
V-Max 600 LE |
| 1994 - 1998 |
Yamaha |
V-Max 600 DX |
| 1994 - 1998 |
Yamaha |
V-Max 600 ST |
| 1997 - 1998 |
Yamaha |
Venture 600 |
| 1994 - 1999 |
Yamaha |
V-Max 600 |
| 1996 - 1998 |
Yamaha |
V-Max 600 XT |
| 1998 |
Yamaha |
V-Max 600 X-TR |
| 1994 - 1996 |
Yamaha |
V-Max 600 Deluxe |
| 1997 - 1998 |
Yamaha |
V-Max 600 X-TC |
| 1997 |
Yamaha |
V-Max 600 X-TC E |
| 1998 |
Yamaha |
V-Max 600 SXS |
| 1998 |
Yamaha |
V-Max 600 X-TC Deluxe |
| 1997 |
Yamaha |
V-Max 600 X-TC R |
Features

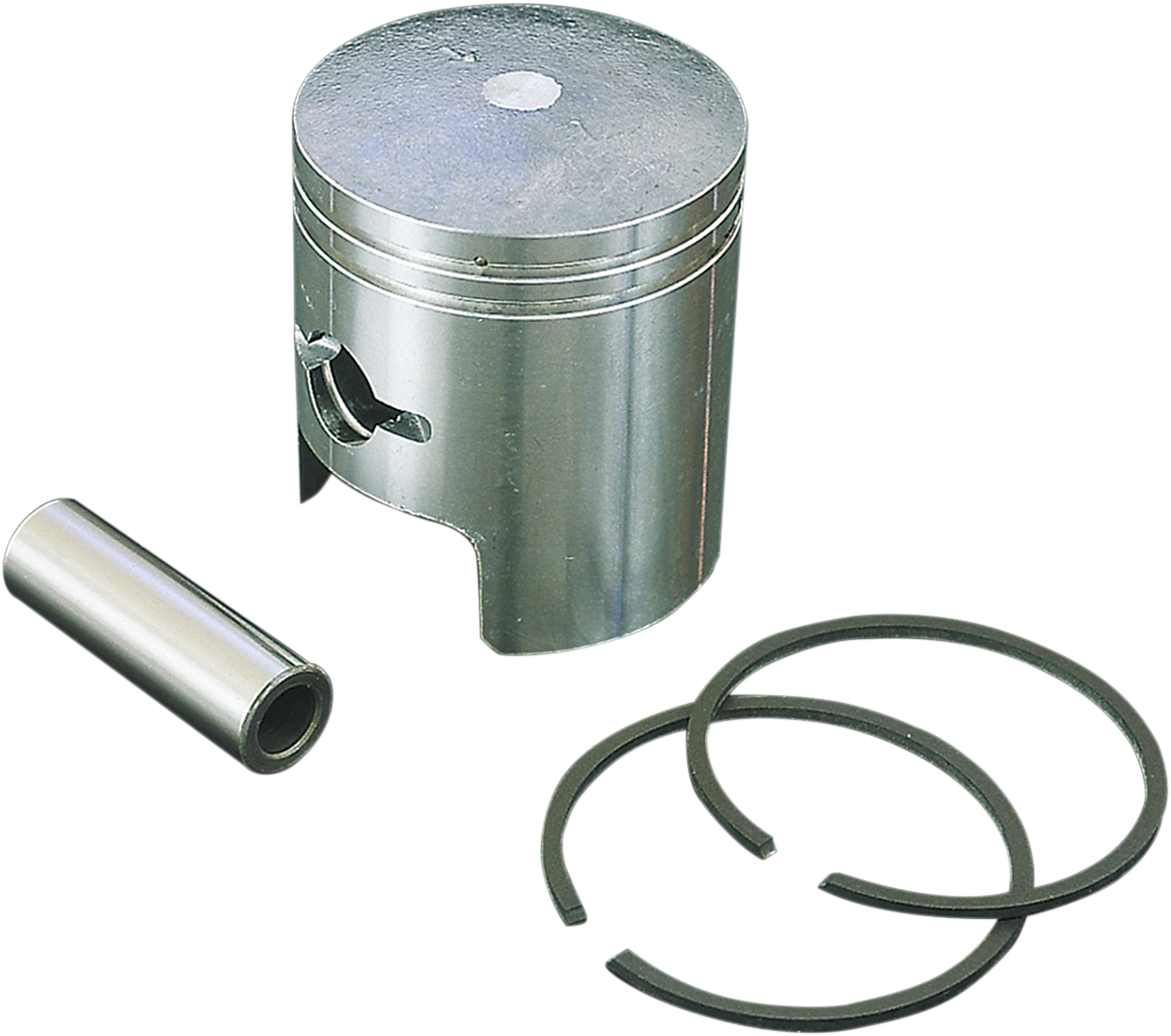

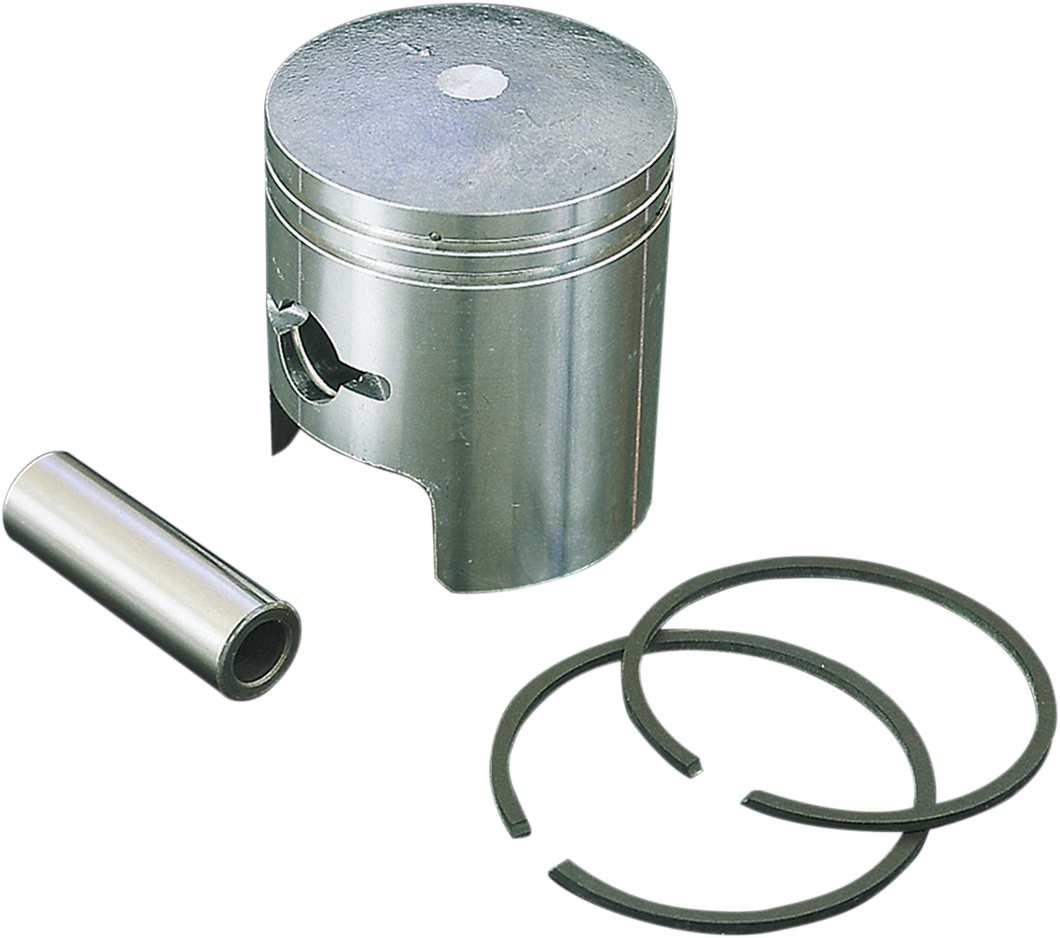

High performance, long life, die-cast pistonsEngineered to provide the best possible path for combustion chamber heat transfer to cylinder wallsAll pistons, rings, pins and circlips are manufactured to OEM specificationsAll individual components will interchange with original partsPTFE coated to create the least amount of friction during break-in period All pistons are priced with ring(s), wrist pins and circlipsSpecs
Displacement: 600 cc
Skirt Coating: PTFE
Stroke Length: 68.00 mm
Bore Size: 74.80 mm
Riding Style: Snow
Engine Type: 2-Stroke
Piston Material: Aluminum
Piston Material: Cast
Product Name: Piston Kit
Units: Kit
Bore - Oversize: Standard
Bore Oversize: Standard
Style: High PerformanceApproximate Package Weight & Dimensions
Weight: 1.13
Height: 4.12
Length: 4.25
Width: 4.25
