DESCRIPTION
Fitments
| Years |
Make |
Model |
| 2009 - 2021 |
Harley-Davidson |
Iron 883 XLN |
| 2011 - 2019 |
Harley-Davidson |
883 SuperLow XLL |
| 1998 - 2006 |
Harley-Davidson |
883 Custom XLC |
| 2002 - 2007 |
Harley-Davidson |
883 Roadster XLR |
| 2005 - 2006 |
Harley-Davidson |
883 Low XLL |
| 2006 - 2010 |
Harley-Davidson |
883 Low EFI XLL |
| 2004 - 2006 |
Harley-Davidson |
883 XL |
| 1987 - 2003 |
Harley-Davidson |
883 Hugger XLH |
| 1999 - 2009 |
Harley-Davidson |
883 Custom EFI XLC |
| 1986 - 1995 |
Harley-Davidson |
883 Deluxe XLH |
| 1986 - 2003 |
Harley-Davidson |
Sportster 883 XLH |
| 2007 - 2009 |
Harley-Davidson |
883 EFI XL |
| 2002 - 2007 |
Harley-Davidson |
883 Roadster EFI XLR |
Features

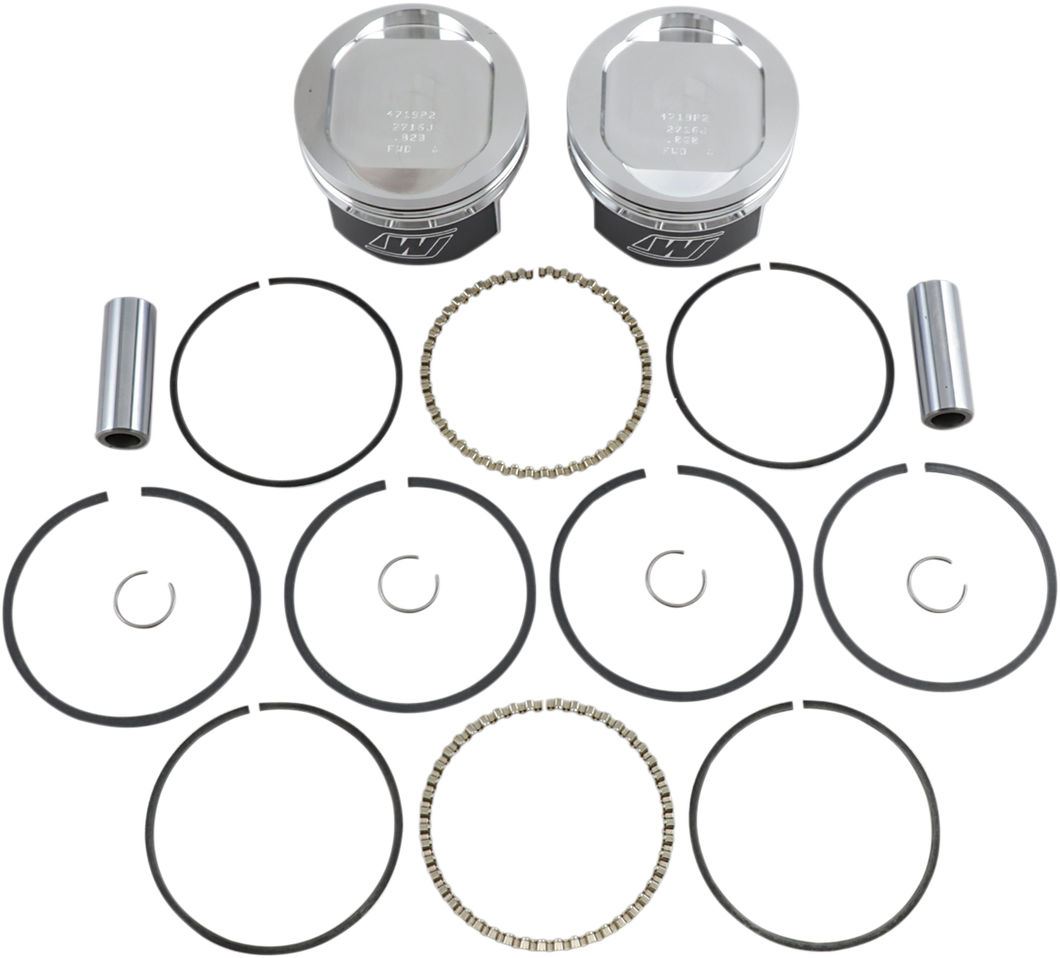

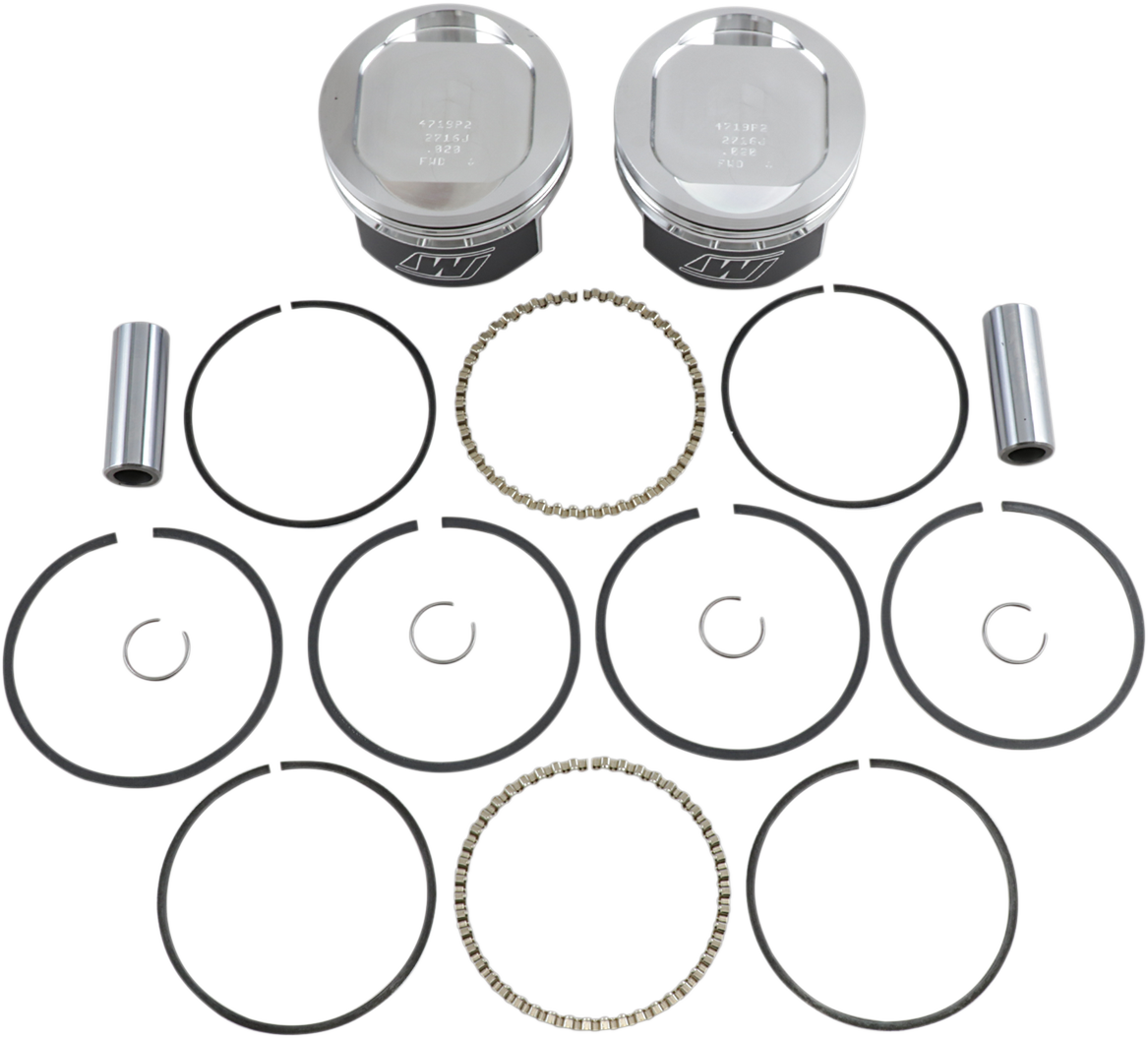

Forged from high-silicon aluminum alloy for maximum strength and dependabilityKit Includes pistons, rings, retainer clips and chrome piston pinsIncludes X-Ring package (0.062" top ring, 0.062" compression ring, and 0.158" oil ring)Pistons are made in the USASpecs
Bore - Oversize: +0,020"
Piston Material: Forged 2618 Aluminum
Bore Oversize: +0.020"
Color/Finish: Aluminum
Compression Ratio: 10.0:1
Displacement: 1200 cc
Piston Diameter: 3.5155"
Skirt Coating: Non-Coated
Units: Kit
Bore Size: 3.518"
Engine Type: 4-Stroke
Type: Top End
Piston Head Shape: Inverted Dome -8.5 cc
Product Name: Rebuild Kit
Riding Style: Street
Stroke Length: 3-13/16"Approximate Package Weight & Dimensions
Weight: 2.31
Height: 4.17
Length: 8.7
Width: 4.37
