DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1988 - 2003 |
Harley-Davidson |
Sportster 1200 XLH |
| 1996 - 2003 |
Harley-Davidson |
1200 Custom XLC |
| 1996 - 2003 |
Harley-Davidson |
1200 Sport XLS |
| 1997 - 2002 |
Buell |
M2 Cyclone |
| 1997 - 2002 |
Buell |
S3 Thunderbolt |
| 1997 - 2000 |
Buell |
S3T Thunderbolt |
| 1999 - 2002 |
Buell |
X1 Lightning |
| 1994 - 1995 |
Buell |
S2 Thunderbolt |
| 1988 |
Buell |
RR 1000 Battletwin |
| 1996 - 1998 |
Buell |
S1 Lightning |
Features

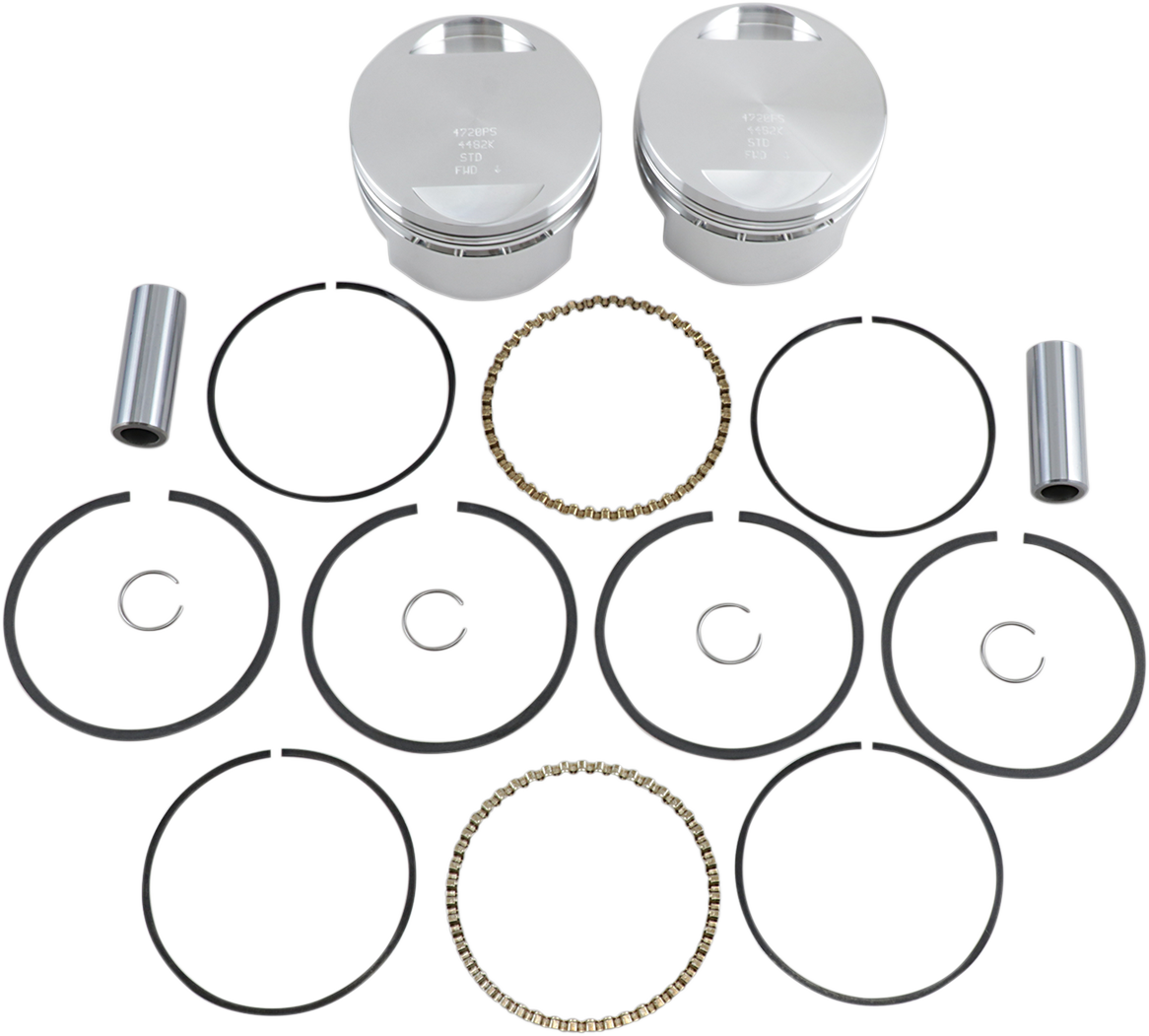

Forged from high-silicon aluminum alloy for maximum strength and dependabilityKit Includes pistons, rings, retainer clips and chrome piston pinsIncludes X-Ring package (0.062" top ring, 0.062" compression ring, and 0.158" oil ring)Pistons are made in the USASpecs
Piston Material: Forged 2618 Aluminum
Bore - Oversize: Standard
Bore Oversize: Standard
Color/Finish: Aluminum
Piston Diameter: 3.4955"
Piston Head Shape: Flat Top -2.8 cc
Riding Style: Street
Skirt Coating: Non-Coated
Stroke Length: 3-13/16"
Units: Kit
Displacement: 1200 cc
Product Name: Rebuild Kit
Bore Size: 3.498"
Compression Ratio: 9.6:1
Engine Type: 4-Stroke
Type: Top EndApproximate Package Weight & Dimensions
Weight: 2.5
Height: 4.25
Length: 8.7
Width: 4.37
