DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1972 - 1985 |
Harley-Davidson |
Sportster 1000 XLH |
| 1977 - 1978 |
Harley-Davidson |
Sportster 1000 XLT |
| 1983 - 1985 |
Harley-Davidson |
Sportster 1000 XLX |
| 1983 - 1984 |
Harley-Davidson |
Sportster 1000 XR |
| 1972 - 1979 |
Harley-Davidson |
Sportster 1000 XLCH |
| 1977 - 1978 |
Harley-Davidson |
Café Racer XLCR |
| 1979 - 1985 |
Harley-Davidson |
Roadster 1000 XLS |
Features

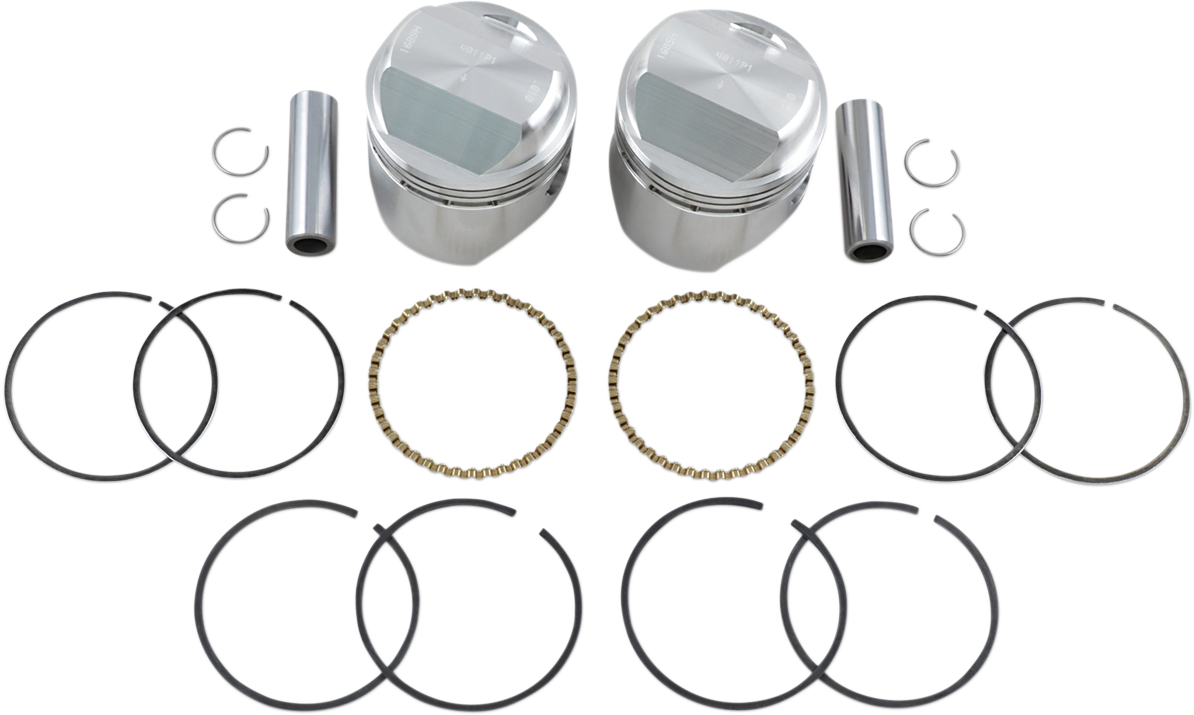

Forged from high-silicon aluminum alloy for maximum strength and dependabilityKit Includes pistons, rings, retainer clips and chrome piston pinsIncludes X-Ring package (0.062" top ring, 0.062" compression ring, and 0.158" oil ring)Pistons are made in the USASpecs
Bore - Oversize: +0,010"
Compression Ratio: 10.0:1
Displacement: 1000 cc
Displacement: 1003 cc
Piston Diameter: 3.195"
Piston Material: 4032 Aluminum Alloy
Piston Material: Forged
Units: Kit
Bore Size: 3.198"
Engine Type: 4-Stroke
Product Name: Rebuild Kit
Type: Top End
Bore Oversize: +0.010"
Color/Finish: Aluminum
Piston Head Shape: Large Dome +50.7 cc
Riding Style: Street
Skirt Coating: Non-Coated
Stroke Length: 3-13/16"Approximate Package Weight & Dimensions
Weight: 2.7
Height: 4.82
Length: 9.61
Width: 4.88
