Piston Kit - +0.010" - XL 1200 | Buell with OEM 1200 Heads

WISECO

Piston Kit - +0.010" - XL 1200 | Buell with OEM 1200 Heads

0903-0145

Regular price $409.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1996 - 2003 Harley-Davidson 1200 Sport XLS
1988 - 2003 Harley-Davidson Sportster 1200 XLH
1996 - 2003 Harley-Davidson 1200 Custom XLC
1997 - 2002 Buell M2 Cyclone
1997 - 2002 Buell S3 Thunderbolt
1997 - 2000 Buell S3T Thunderbolt
1999 - 2002 Buell X1 Lightning
1988 Buell RR 1000 Battletwin
1996 - 1998 Buell S1 Lightning
1994 - 1995 Buell S2 Thunderbolt

Features

  • Forged from high-silicon aluminum alloy for maximum strength and dependability

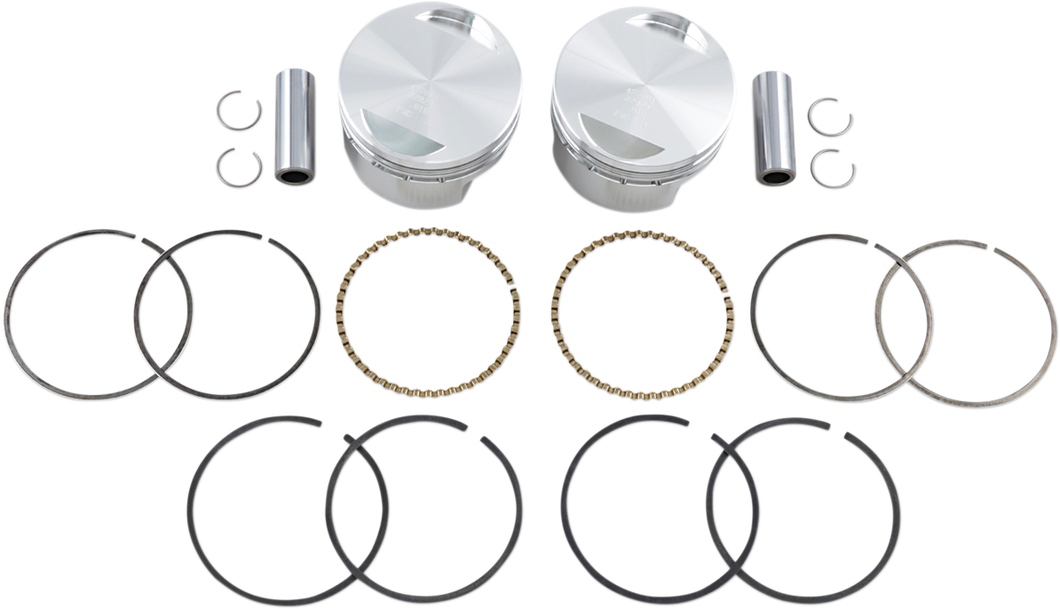

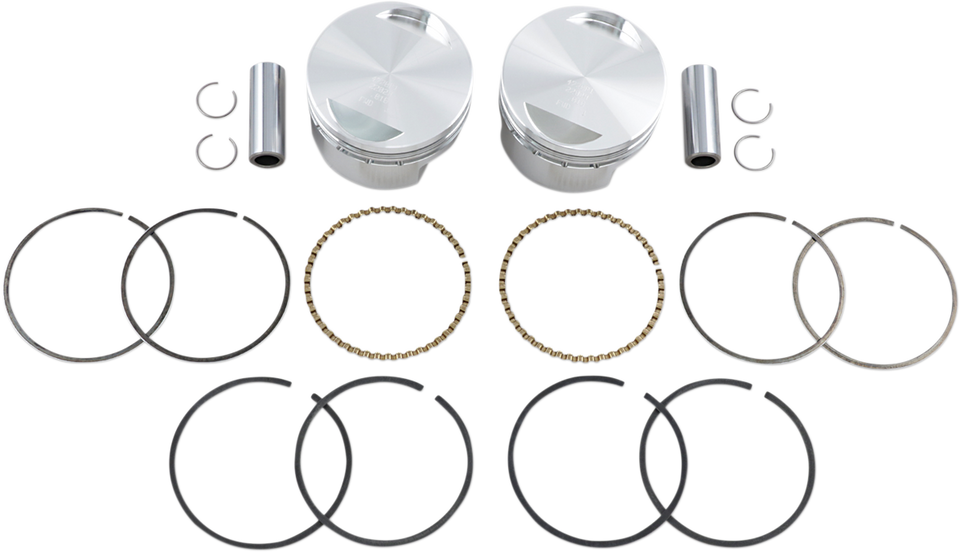

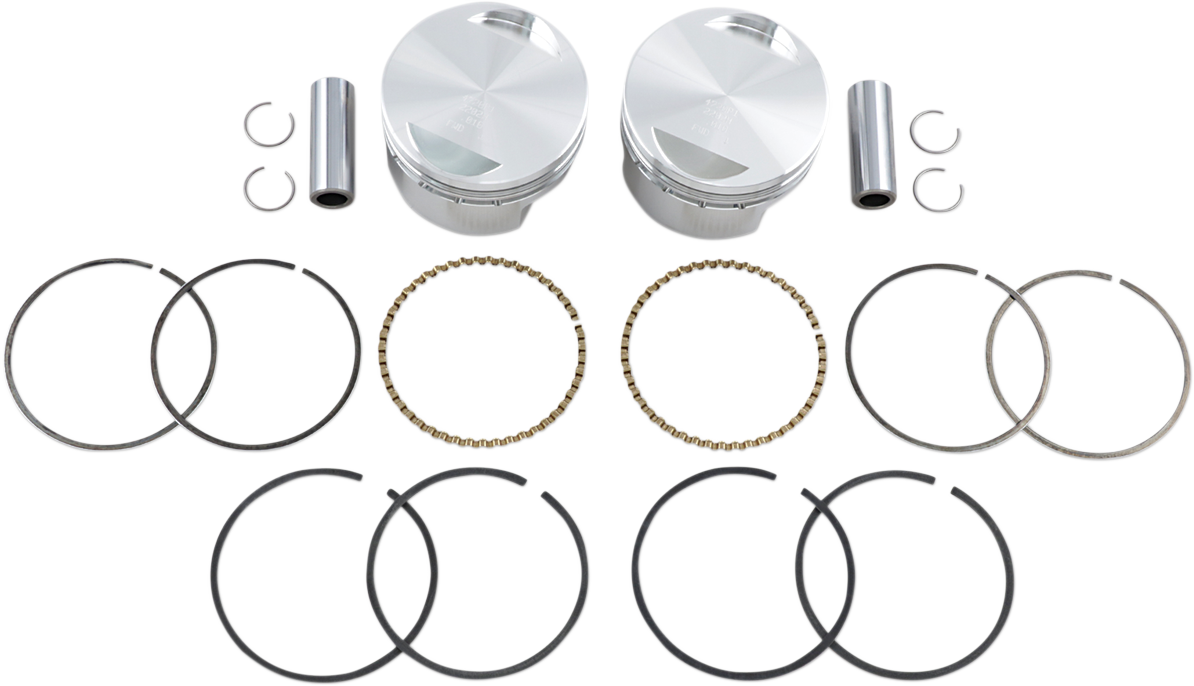

  • Kit Includes pistons, rings, retainer clips and chrome piston pins
  • Includes X-Ring package (0.062" top ring, 0.062" compression ring, and 0.158" oil ring)
  • Pistons are made in the USA

  • Specs

  • Bore Oversize: +0.010"
  • Color/Finish: Aluminum
  • Engine Type: 4-Stroke
  • Piston Diameter: 3.5055"
  • Piston Head Shape: Flat Top -2.8 cc
  • Skirt Coating: Non-Coated
  • Stroke Length: 3-13/16"
  • Units: Kit
  • Bore - Oversize: +0,010"
  • Bore Size: 3.508"
  • Compression Ratio: 9.6:1
  • Type: Top End
  • Displacement: 1200 cc
  • Piston Material: Forged 2618 Aluminum
  • Product Name: Rebuild Kit
  • Riding Style: Street

  • Approximate Package Weight & Dimensions

  • Weight: 2.32
  • Height: 4
  • Length: 9.75
  • Width: 4.9
