Features

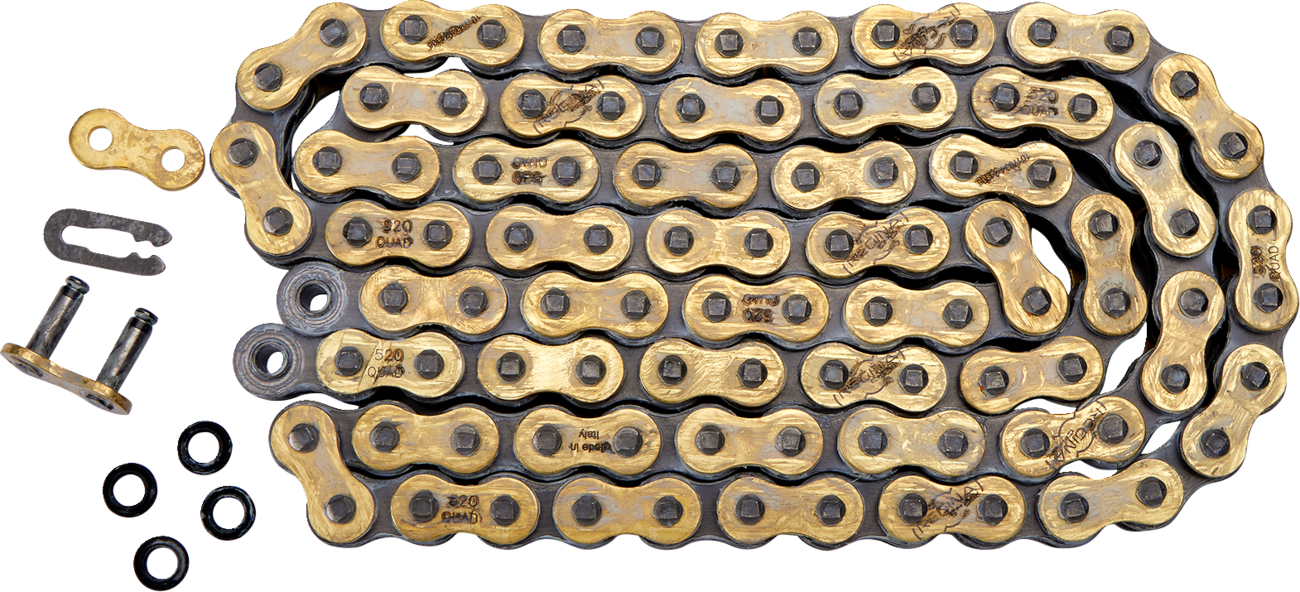

The ultimate ATV chain, developed to withstand the severe stresses of ATV riding, yet lightweight with maximum performanceQUAD chains feature the patented Z44 sealing rings, which greatly improve performance and wear life, making previous X-ring and Z-ring chains obsolete50% reduction in friction compared to traditional O-ringsConstant lubrication from special high-temperature grease in the critical pin/bushing area provides long lifeHigh-carbon alloy pins to minimize wear and increased roller thickness to prolong durabilityThicker outer plates and quad-riveting for greater tensile strengthAll parts are shot-peened for maximum fatigue resistance, and all chains are pre-loaded for superior performance and minimal adjustmentSuitable for ATVs up to 900cc8,093 ft./lbs. tensile strengthGold color
Specs
Chain Type: 520 QUAD
Number of Links: 78
Riding Style: ATV
Units: Each
Master Link Connector: Clip
Model: Quad Series
Tensile Strength: 8205 lb
Weight: 1,76 kg/100 Links
Maximum Engine Displacement (Offroad): 500 cc
Riding Style: UTV
Seal Type: Z44-Ring
Tensile Strength: 36.5 kN
Chain Size: 520
Product Name: Drive Chain
Approximate Package Weight & Dimensions
Weight: 3.15
Height: 1.17
Length: 10.9
Width: 4.86
