Piston Kit - Standard - XL 1000 cc

WISECO

Piston Kit - Standard - XL 1000 cc

K1600

Regular price $344.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1972 - 1985 Harley-Davidson Sportster 1000 XLH
1972 - 1979 Harley-Davidson Sportster 1000 XLCH
1983 - 1984 Harley-Davidson Sportster 1000 XR
1977 - 1978 Harley-Davidson Café Racer XLCR
1979 - 1985 Harley-Davidson Roadster 1000 XLS
1977 - 1978 Harley-Davidson Sportster 1000 XLT
1983 - 1985 Harley-Davidson Sportster 1000 XLX

Features

  • Forged from high-silicon aluminum alloy for maximum strength and dependability

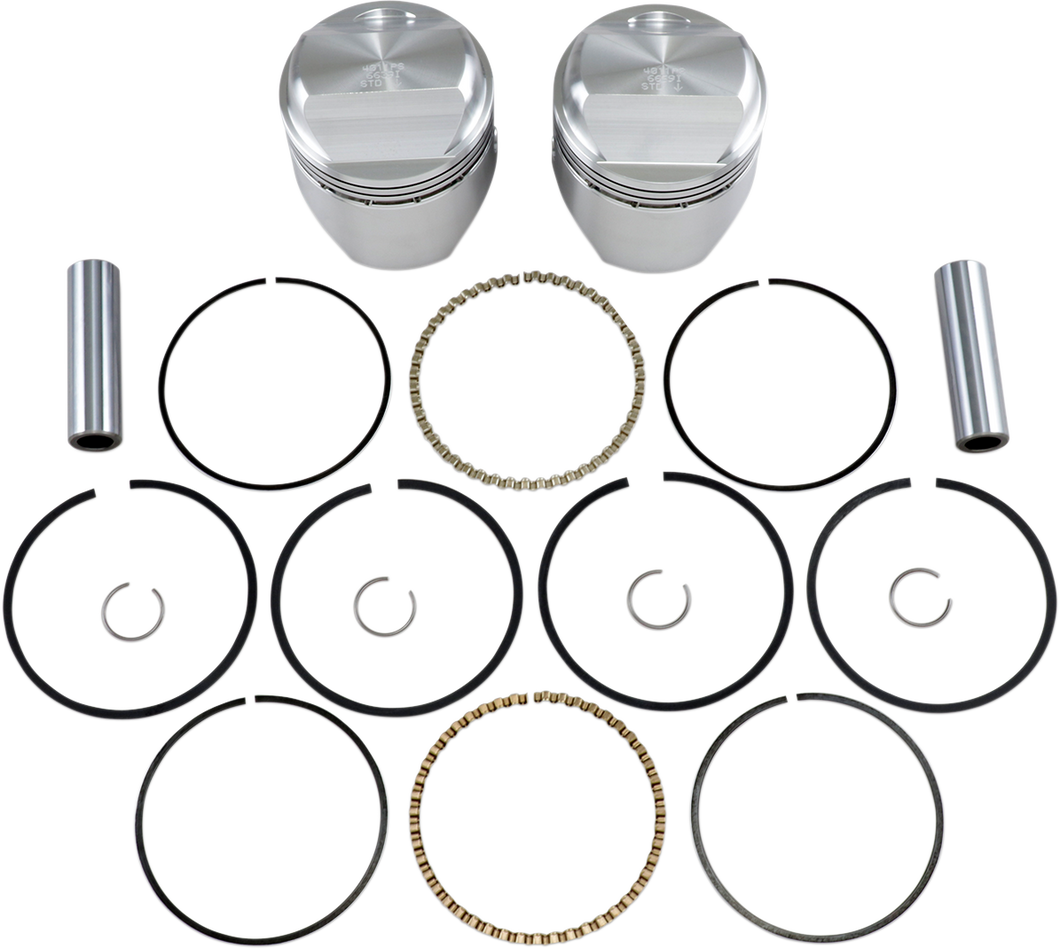

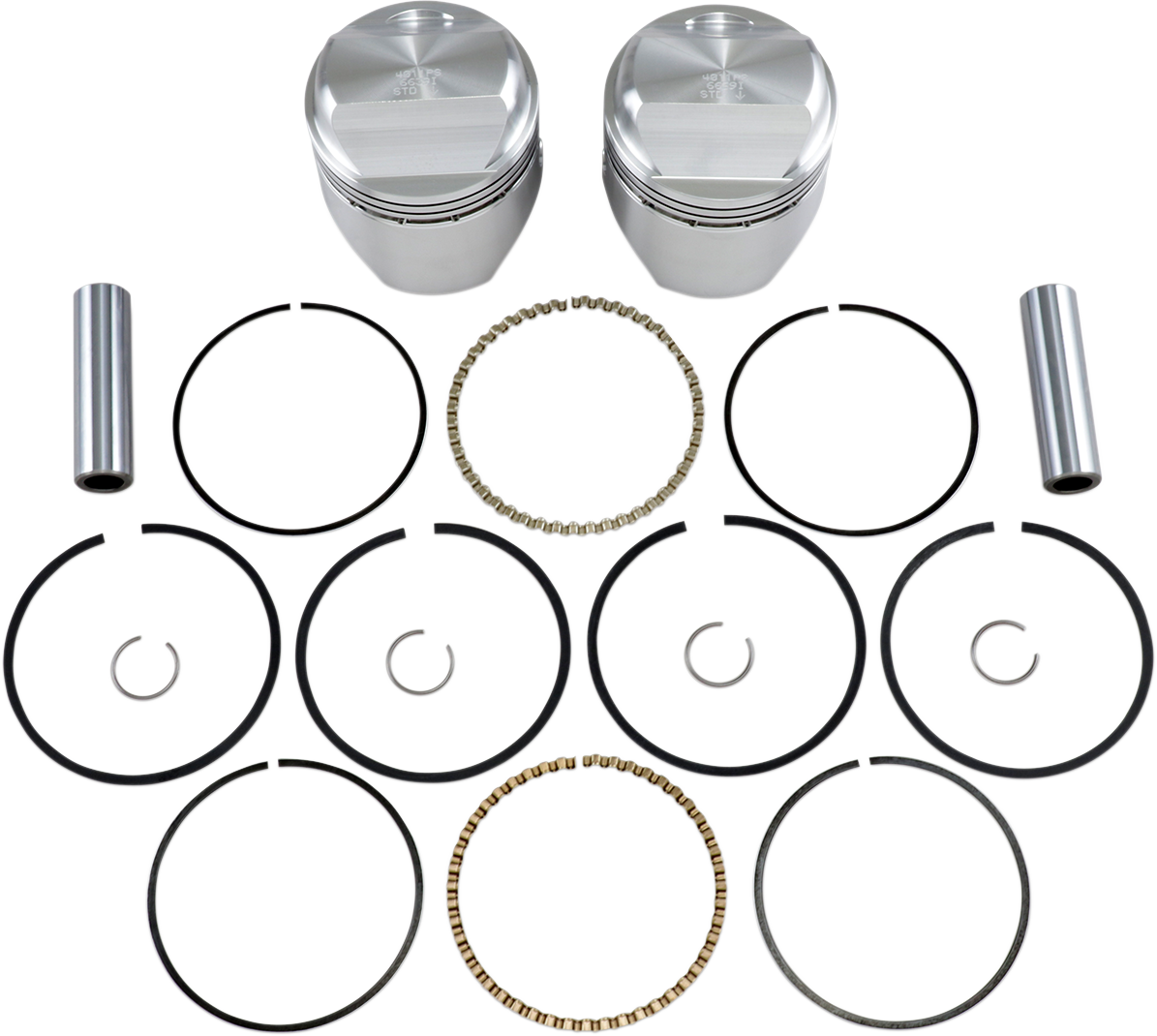

  • Kit Includes pistons, rings, retainer clips and chrome piston pins
  • Includes X-Ring package (0.062" top ring, 0.062" compression ring, and 0.158" oil ring)
  • Pistons are made in the USA

  • Specs

  • Engine Type: 4-Stroke
  • Piston Diameter: 3.185"
  • Product Name: Rebuild Kit
  • Riding Style: Street
  • Type: Top End
  • Displacement: 1000 cc
  • Piston Material: 4032 Aluminum Alloy
  • Piston Material: Forged
  • Bore - Oversize: Standard
  • Bore Oversize: Standard
  • Compression Ratio: 10.0:1
  • Bore Size: 3.188"
  • Color/Finish: Aluminum
  • Piston Head Shape: Large Dome +50.7 cc
  • Skirt Coating: Non-Coated
  • Stroke Length: 3-13/16"
  • Units: Kit

  • Approximate Package Weight & Dimensions

  • Weight: 2.75
  • Height: 4.17
  • Length: 8.77
  • Width: 4.25
