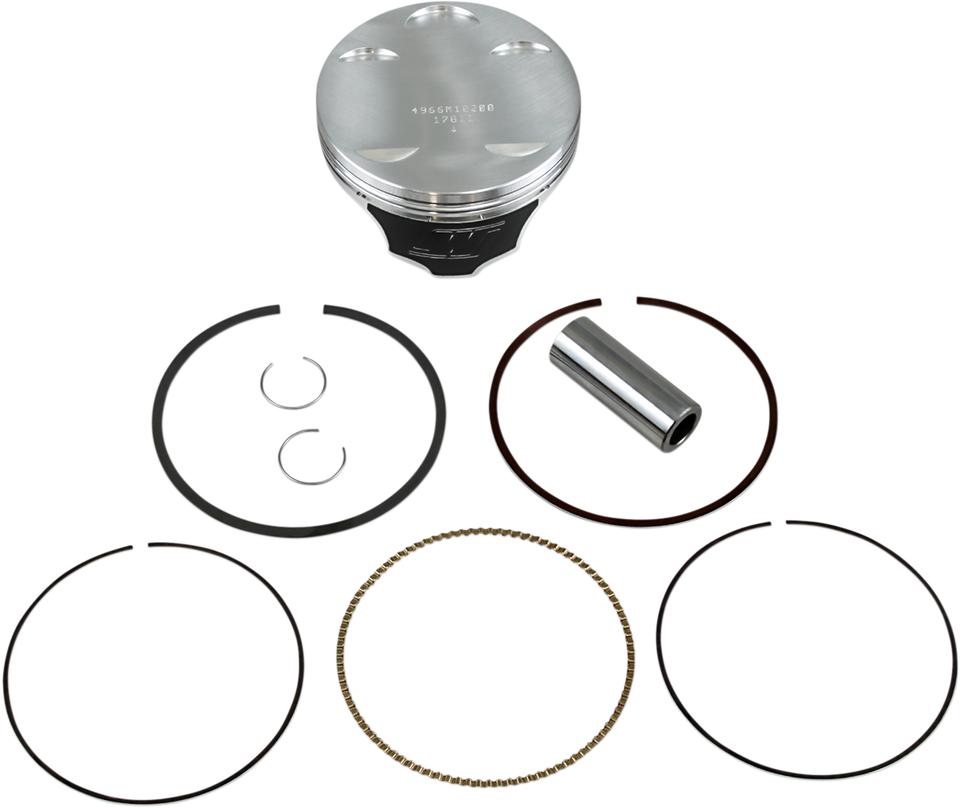

Piston Kit - 102.00 mm - Yamaha
DESCRIPTION
Fitments
Years
Make
Model
2005 - 2008
Yamaha
YFM 660 FA Grizzly 4x4
2004
Yamaha
Raptor 660R LE 4x2
2004 - 2007
Yamaha
YXR 660F Rhino 4x4
2002 - 2004
Yamaha
YFM 660 F Grizzly 4x4
2007 - 2008
Yamaha
YFM 660 FG Grizzly 4x4
2001 - 2005
Yamaha
Raptor 660R SE 4x2
2001 - 2005
Yamaha
Raptor 660R 4x2
Features Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength Dedicated forgings allow for optimized strength-to-weight ratio Ideal for multiple purpose riding Kit includes piston, rings and circlips Specs
Model: Forged Series
Units: Kit
Bore - Oversize: +2,00 mm
Bore - Oversize: +2.00 mm
Bore Size: 102.00 mm
Displacement: 660 cc
Engine Type: 4-Stroke
Product Name: Piston Kit
Riding Style: ATV
Skirt Coating: ArmorGlide®
Stroke Length: 84.00 mm
Compression Ratio: 9.9:1
Piston Diameter: 101.92 mm
Piston Material: Forged 2618 Aluminum Approximate Package Weight & Dimensions
Weight: 1.45
Height: 4.23
Length: 4.84
Width: 4.54
