DESCRIPTION
Fitments
Years |
Make |
Model |
1987 - 1989 |
Honda |
TRX350D Foreman 4x4 |
1985 - 1986 |
Honda |
ATC 350 X |
Features

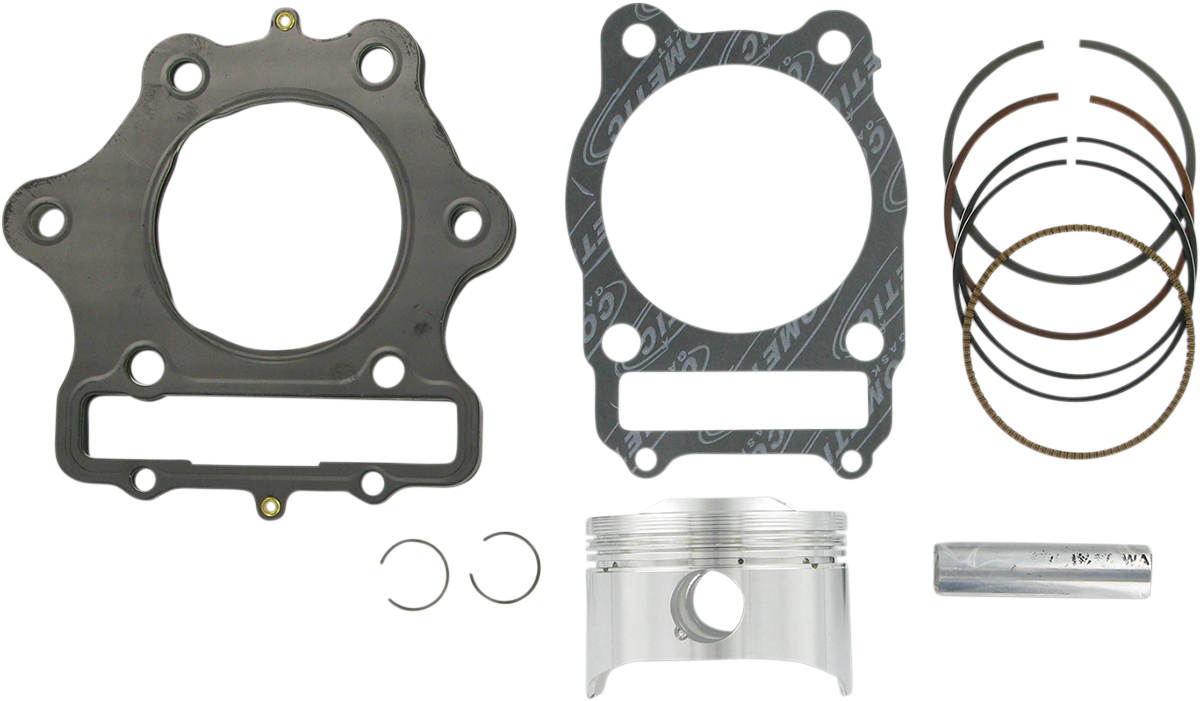

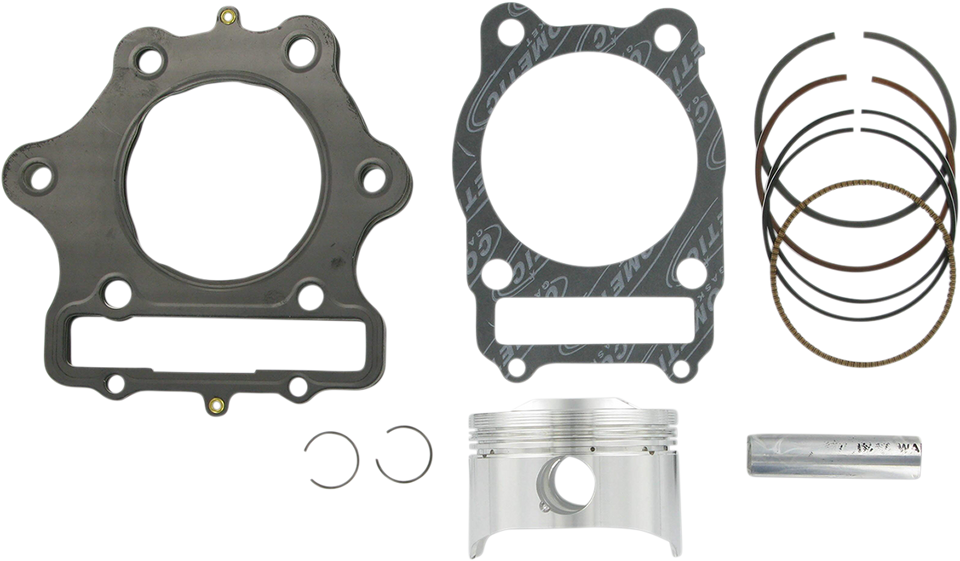

Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engineWiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)Wiseco pistons can be fitted only with Wiseco ringsSpecs
Compression Ratio: 10.25:1
Piston Diameter: 80.95 mm
Riding Style: Off-Road
Skirt Coating: Non-Coated
Units: Kit
Bore Size: 81.00 mm
Displacement: 350.4 cc
Model: Forged Series
Product Name: Rebuild Kit
Stroke Length: 68.00 mm
Type: Top End
Bore - Oversize: Standard
Bore - Oversize: Standard
Engine Type: 4-Stroke
Piston Material: 2618 Aluminum Alloy
Riding Style: ATVApproximate Package Weight & Dimensions
Weight: 2.05
Height: 5.5
Length: 8.56
Width: 8.01
