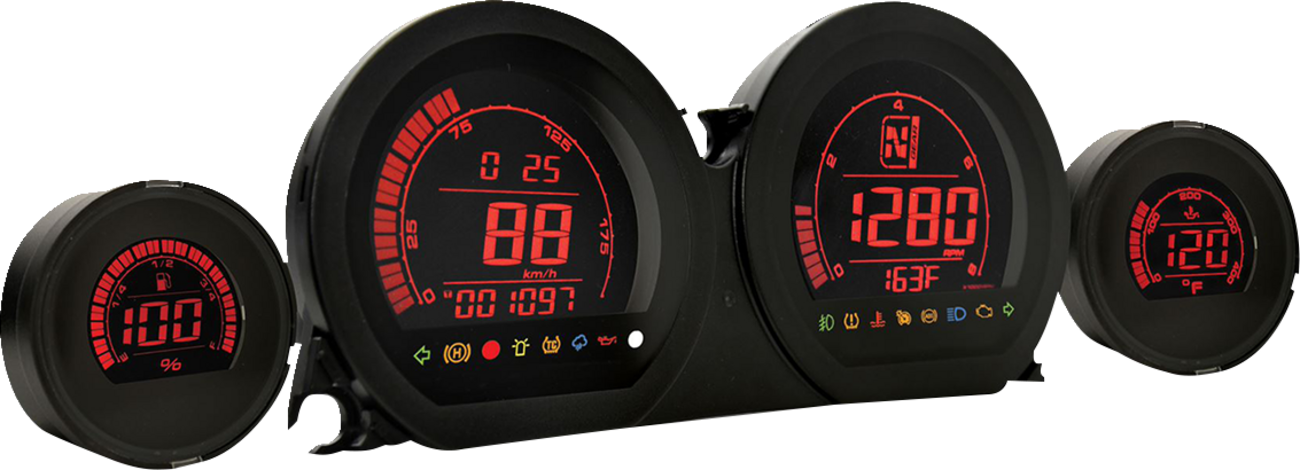

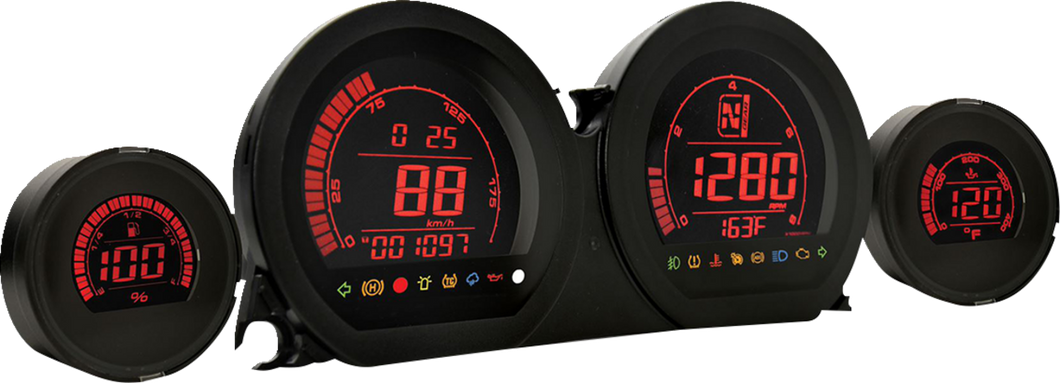

HD-03 - Four-Piece LCD Gauge Kit - Eight Changeable Colors
HD-03 - Four-Piece LCD Gauge Kit - Eight Changeable Colors
HD-03 - Four-Piece LCD Gauge Kit - Eight Changeable Colors
HD-03 - Four-Piece LCD Gauge Kit - Eight Changeable Colors

KOSO NORTH AMERICA

HD-03 - Four-Piece LCD Gauge Kit - Eight Changeable Colors

2210-0663

$1,149.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2014 - 2023 Harley-Davidson Street Glide Special FLHXS
2014 - 2023 Harley-Davidson Street Glide EFI FLHX
2023 Harley-Davidson Road Glide 3 FLTRT
2015 - 2023 Harley-Davidson Road Glide Special FLTRXS
2022 - 2023 Harley-Davidson Tri Glide Ultra Classic FLHTCUTG
2015 - 2023 Harley-Davidson Road Glide Custom FLTRX
2016 - 2019 Harley-Davidson Road Glide Ultra FLTRU
2022 - 2023 Harley-Davidson Road Glide ST FLTRXST
2020 - 2023 Harley-Davidson Road Glide Limited FLTRK
2022 - 2023 Harley-Davidson Street Glide ST FLHXST
2022 - 2023 Harley-Davidson Electra Glide Ultra Limited FLHTK

Features

  • Plug-and-play
  • Fits directly on OEM dash and connectors

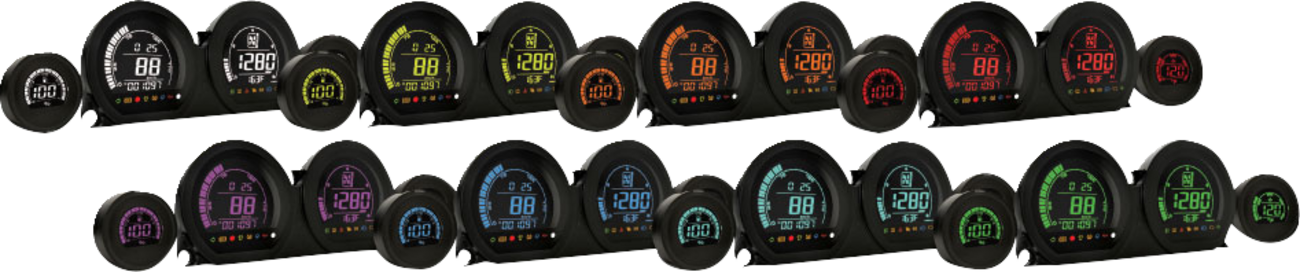

  • Color changeable LCD display
  • Includes speedometer, tachometer, odometer, gear indicator, tripmeter, engine temperature, oil temperature, and fuel level gauges
  • Indicator lights for oil, engine warning, warning light, high beam, fog light, and turn signals
  • Tachometer (0 - 9,999), RPM Shift Light (2,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
  • Speedometer (0 - 199 MPH) [EU: 0 - 320,26 km/h], Maximum Speed Record (0 - 199 MPH) [EU: 0 - 320,26 km/h], Overspeed Warning (19 - 199 MPH) [EU: 30,58 - 320,26 km/h]
  • Odometer (0 - 999,999 miles) [EU: 0 - 1609342,39 km], Tripmeter A/B (0 - 9,999 miles) [EU: 0 - 16091,83 km], Mileage Maintenance (300 - 10,000 miles) [EU: 482,80km - 16093,44 km]
  • Engine Temperature (Standard/Customize), Oil Temperature Meter (32° F - 248° F), Maximum Oil Temperature Record (32° F - 248° F), Effective Temperature Range (14° F - 140° F)
  • Fuel Meter (6 levels | 1 level = 16.6%), Fuel Tank Volume (Off/1 - 9.9 US Gallons) [EU: 3,79 L - 37,48 ], Average Fuel Consumption (Off/MPG), Remaining Mileage (0 - 6,249 miles) [EU: 0 - 10056,79 km]
  • Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)

    • Specs

  • Face Color: Black
  • Housing Color: Black
  • Length: 10.625"
  • Model: HD-03
  • Style: Electronic
  • Type: Temperature Gauge
  • Type: Tripmeter
  • Depth: 2.00"
  • Length: 2.75"
  • Product Name: Gauge Kit
  • Type: Digital Clock
  • Type: Digital Fuel Gauge
  • Type: Digital Volt Meter
  • Units: Kit
  • Width: 2.75"
  • Width: 3.75"
  • Riding Style: Street
  • Type: Multi-Function Speedometer
  • Type: Tachometer
  • Depth: 1.75"
  • Type: Digital Oil Temperature Gauge
  • Type: Shift Light

    • Approximate Package Weight & Dimensions

  • Weight: 1.8
  • Height: 4
  • Length: 13.5
  • Width: 7
