Vented Dipstick - Polished
Vented Dipstick - Polished
Vented Dipstick - Polished

FEULING OIL PUMP CORP.

Vented Dipstick - Polished

0710-0261

$299.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2018 - 2019 Harley-Davidson Softail Breakout FXBR
2018 - 2020 Harley-Davidson Softail Breakout 114 FXBRS
2018 - 2020 Harley-Davidson Softail Deluxe FLDE
2018 - 2019 Harley-Davidson Softail Fat Bob FXFB
2018 - 2021 Harley-Davidson Softail Heritage Classic FLHC
2018 - 2022 Harley-Davidson Softail Heritage Classic 114 FLHCS
2018 - 2020 Harley-Davidson Softail Low Rider FXLR
2018 - 2021 Harley-Davidson Softail Slim FLSL
2018 - 2022 Harley-Davidson Softail Fat Bob 114 FXFBS
2018 - 2019 Harley-Davidson Softail Fat Boy FLFB
2018 - 2021 Harley-Davidson Softail Sport Glide FLSB
2019 - 2020 Harley-Davidson FXDR 114
2018 - 2022 Harley-Davidson Softail Fat Boy 114 FLFBS
2018 - 2022 Harley-Davidson Softail Street Bob FXBB
2020 - 2022 Harley-Davidson Softail Low Rider S FXLRS
2020 - 2022 Harley-Davidson Softail Standard FXST
2022 Harley-Davidson Softail Low Rider ST FXLRST
2022 Harley-Davidson Softail Low Rider El Diablo FXRST

Features

  • Billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PCV style breather, consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve
  • Screws into the factory oil fill spout as a stock replacement part
  • Blowby is pressure that is forced past the rings and cylinders, pushed into the crankcase and then forced into the oil tank
  • Fueling test results show a decrease in engine oil sump levels, more freely/smoothe revving engine and increased MPG and decreased blowby
  • Removes unwanted build-up of blow by pressure in the oil tank
  • There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) Full Hot Stand or the bike upright and level (FHU) Full Hot Upright
  • This dipstick does get hot, use a glove when checking oil level

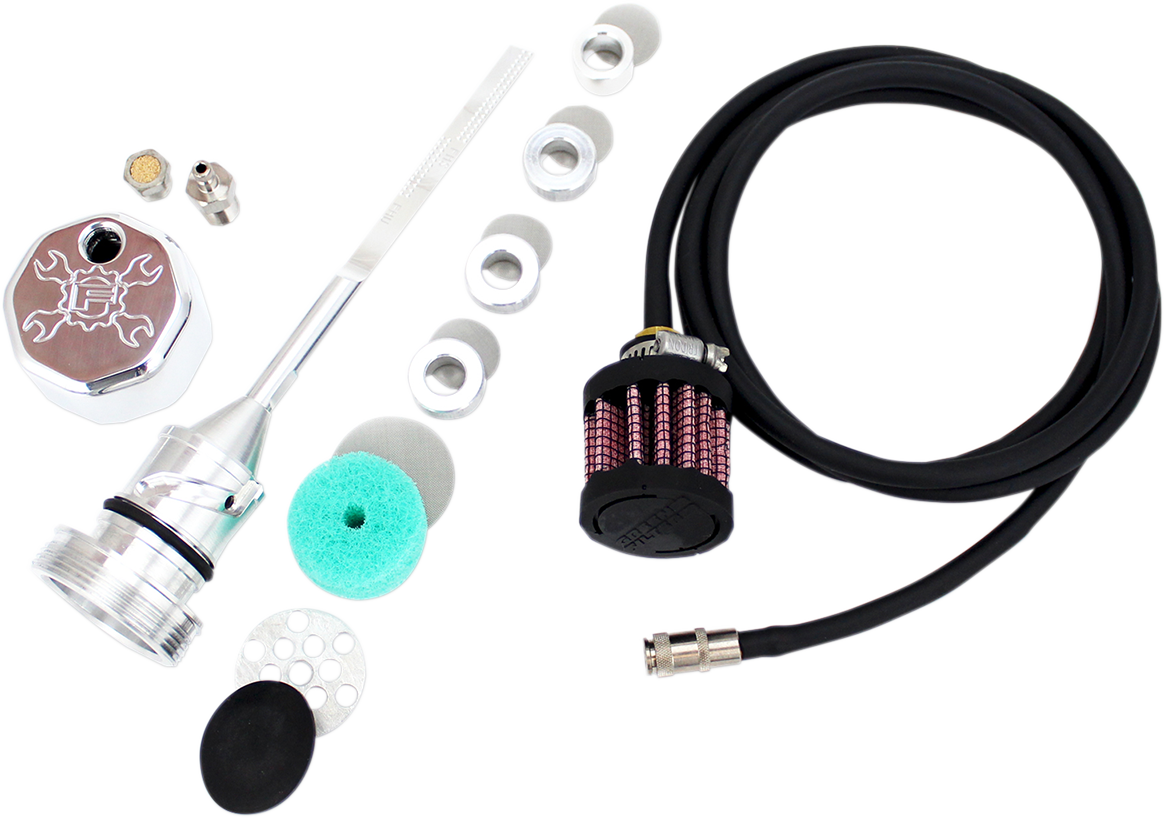

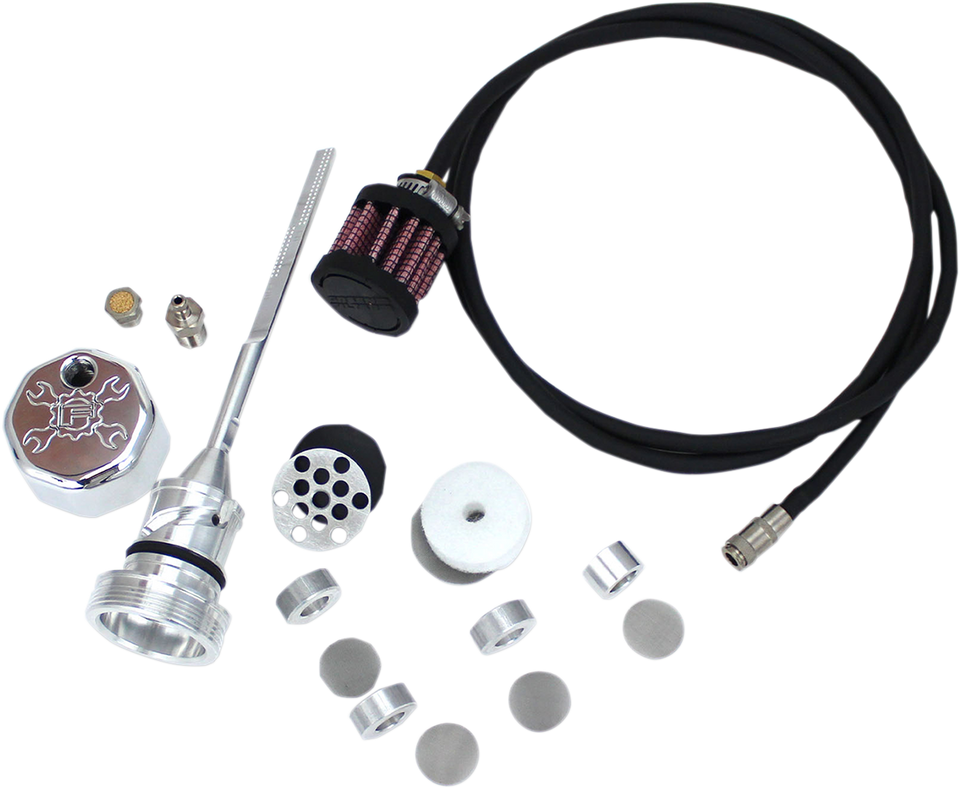

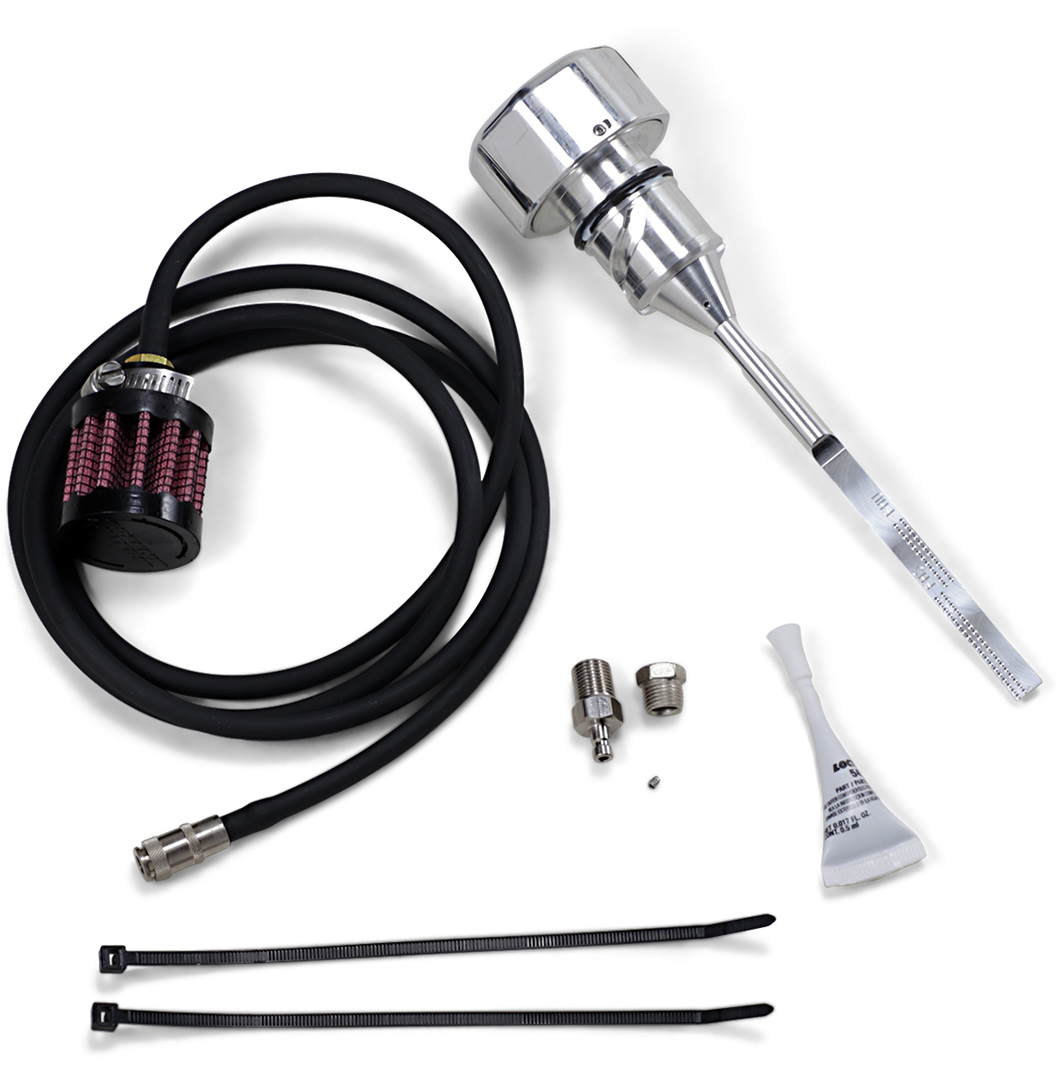

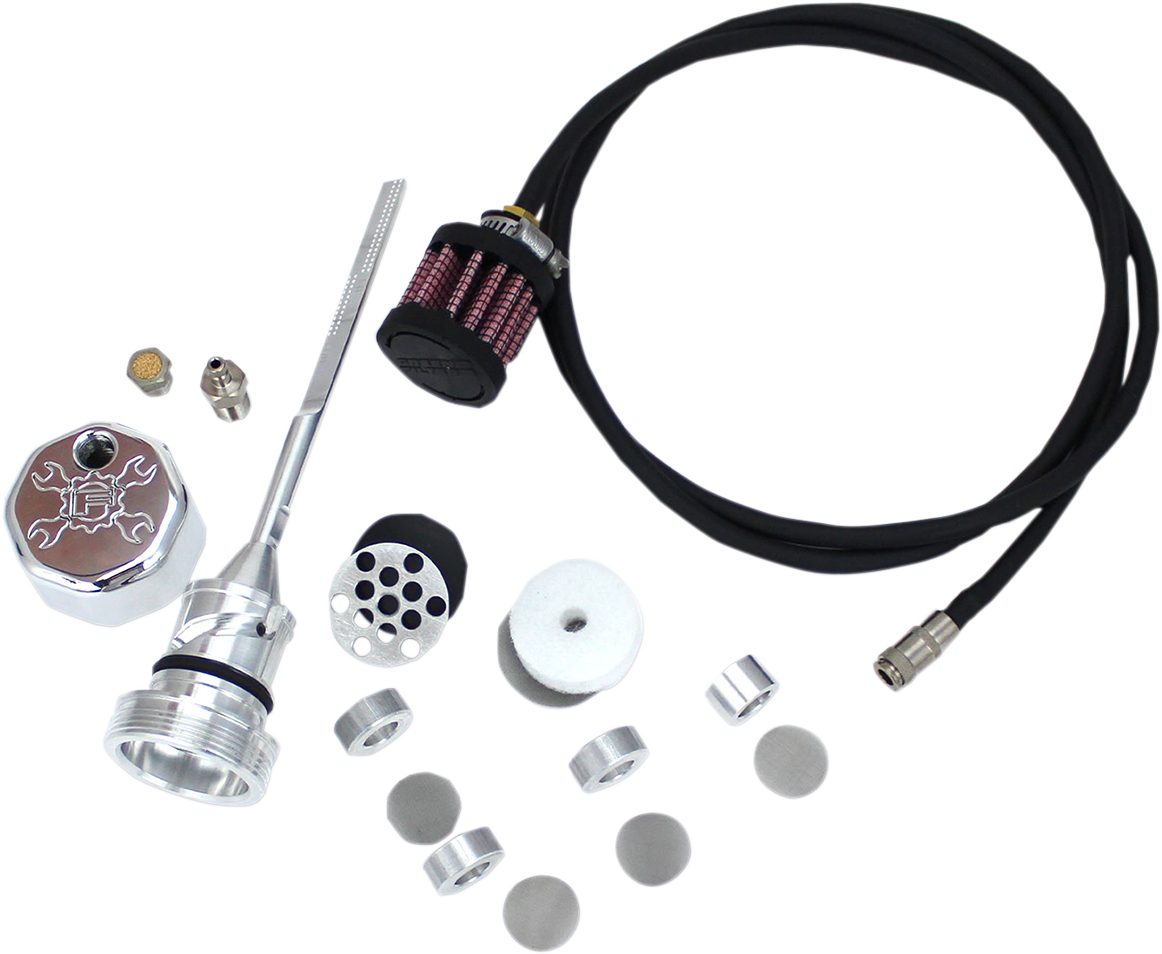

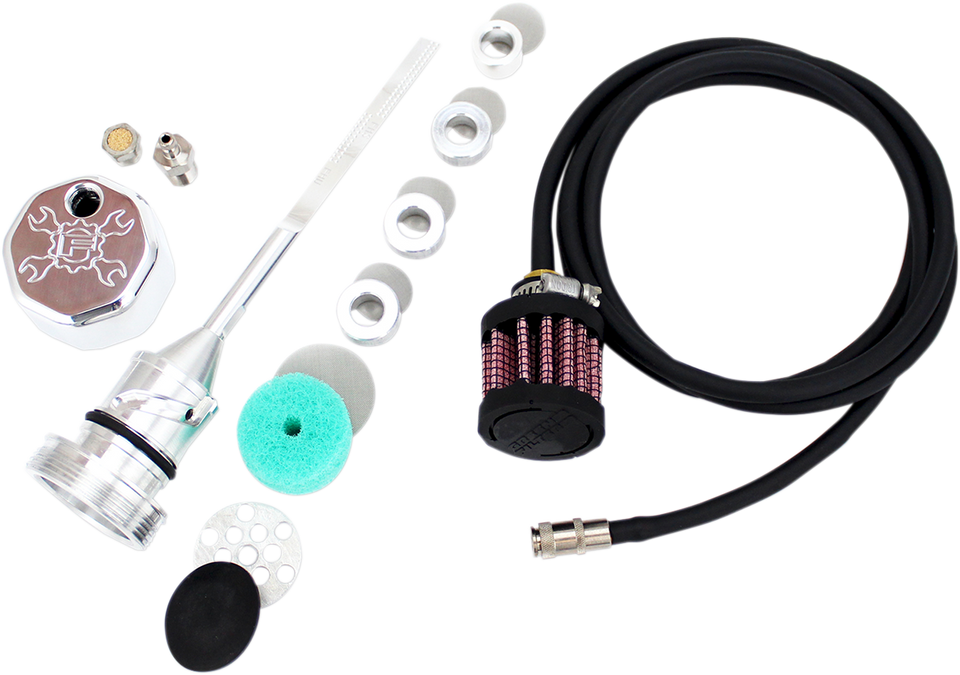

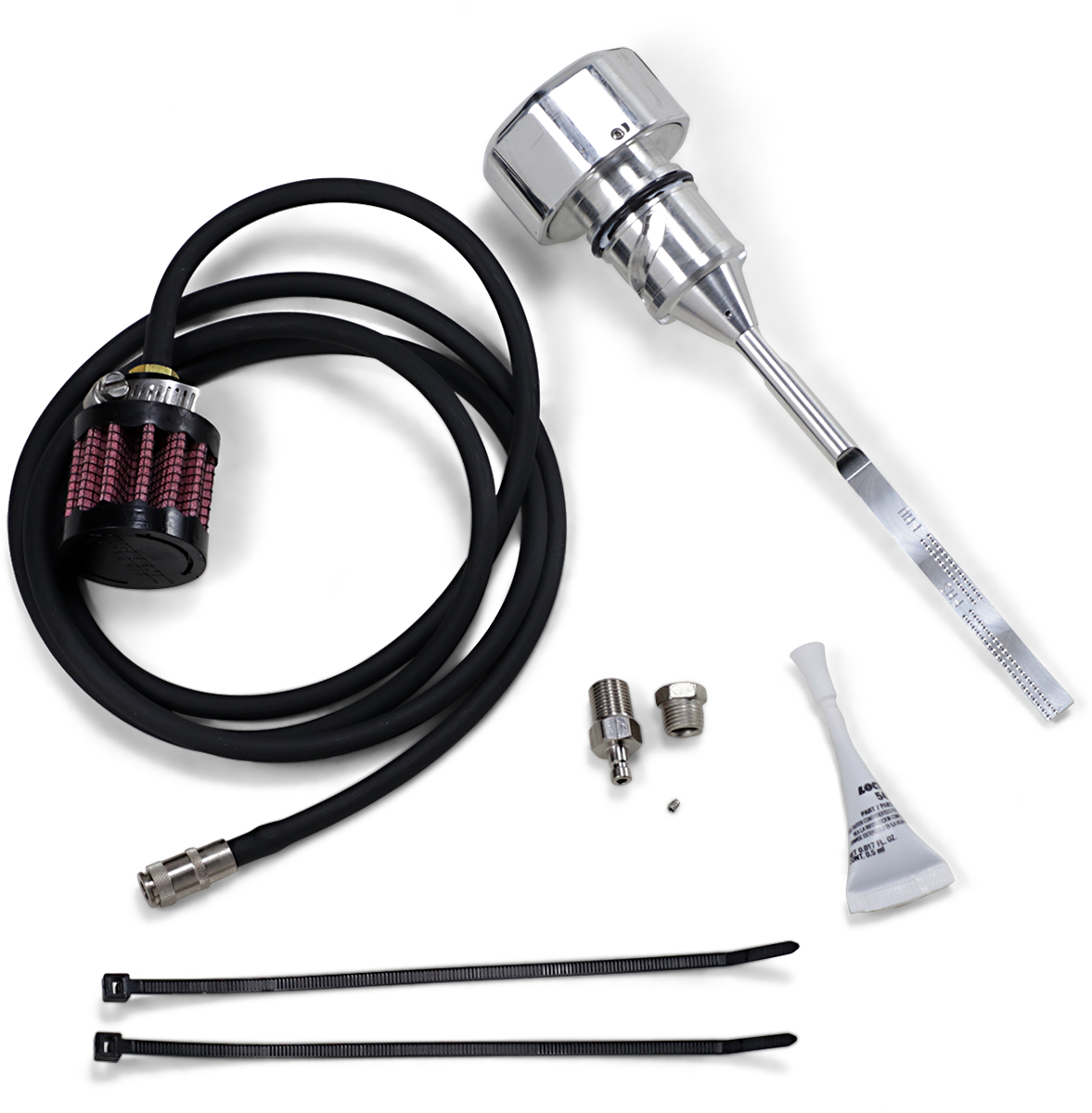

  • Includes 2 different venting style options for installing the dipstick: option 1 - 1/8 NPT breather vent fitting with internal porous filter element, option 2 - quick disconnect coupler fitting with rubber hose and filter element
  • It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot
  • The oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
  • Made in the U.S.A.

    • Specs

  • Product Name: Vented Dipstick
  • Base Color: Silver
  • Color/Finish: Polished
  • Units: Each
  • Riding Style: Street

    • Approximate Package Weight & Dimensions

  • Weight: 1.05
  • Height: 2.31
  • Length: 8.54
  • Width: 8.15
