Features

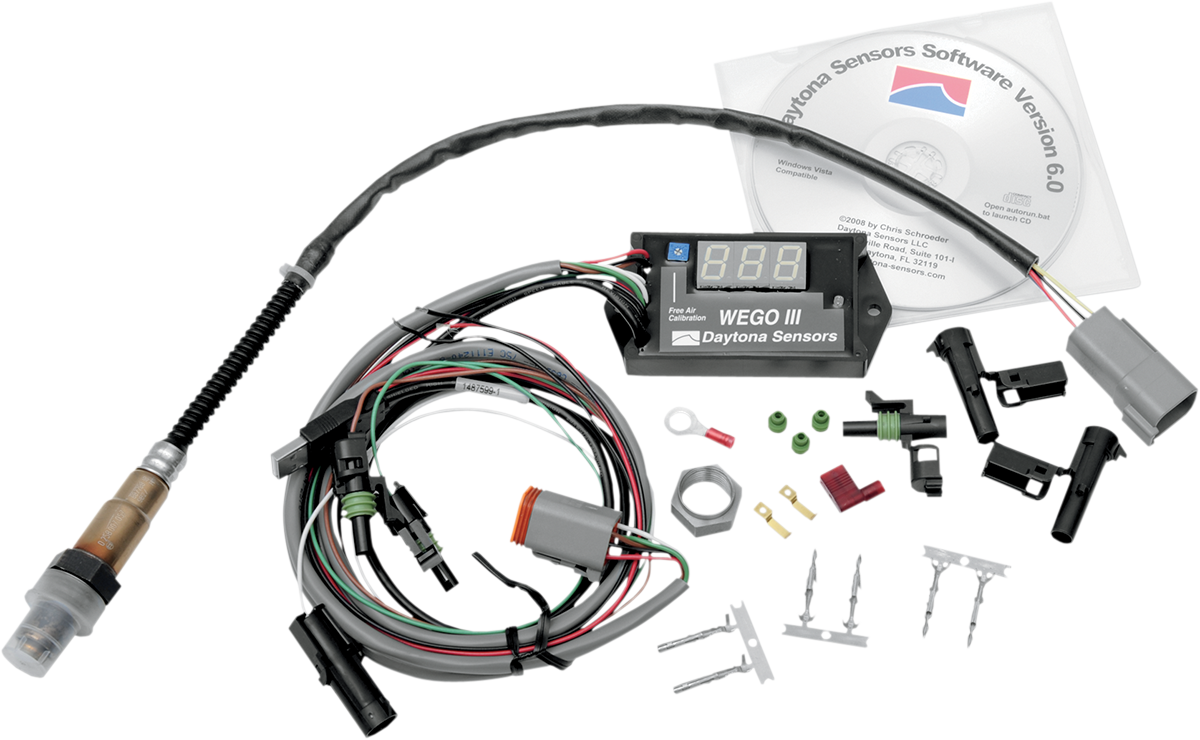

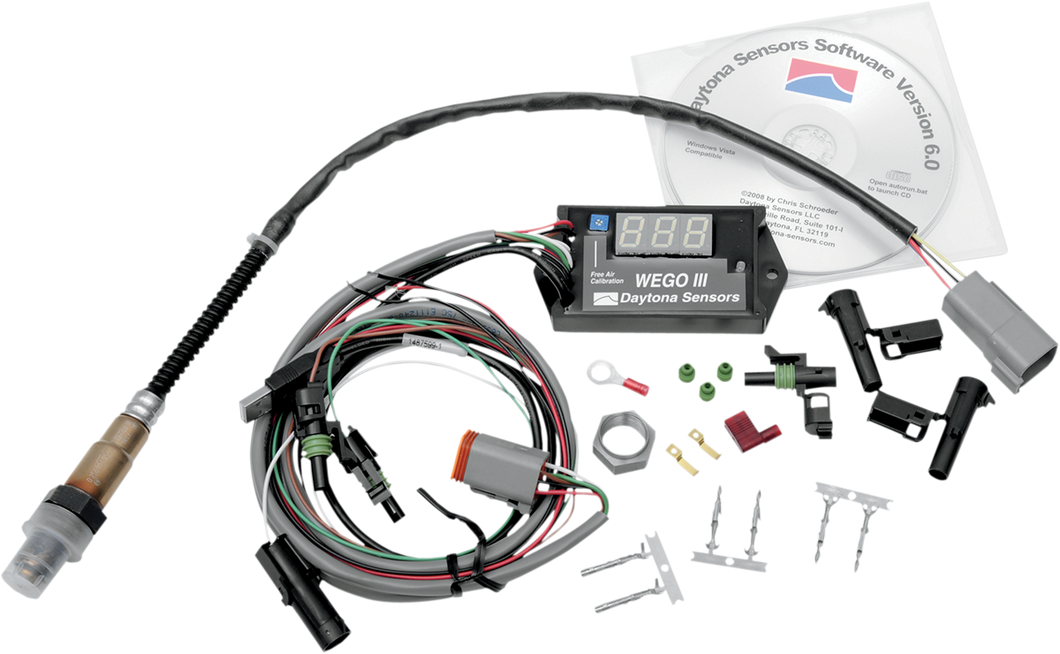

Sold in a system that includes WEGO III Wide-Band Exhaust Gas Oxygen Sensor Interface, 42" harness, Bosch LSU 4.2 five-wire wide-band oxygen sensor, 18x1.5mm weld nut for mounting sensor on exhaust pipe and software on CD ROMWEGO III data logging software runs under Windows ME/XP/Vista; software allows AFR, engine rpm and analog sensor data with user-defined scaling; data can also be exported to Excel for further analysisDisplays AFR (air/fuel ratio) and logs more than two hours data including AFR and engine rpm; spare 0-5V analog input for sensors such as throttle position or manifold pressureWide supply voltage range from 11-16V allows operation from battery on small engines and race vehicles without an alternator; current drain is approximately 1 ampWaterproof, ultra-bright, daylight-readable blue LED display with automatic dimming under low-light conditionsCan be used for on-road or dyno testing; suitable for motorcycle and other small engine applicationsHighly accurate with less than +/-0.10 AFR error over 10.3-19.5 AFR rangeEasy free-air calibration procedure corrects for sensor aging effectsComplete fuel/air ratio metering system with built-in data logging0-5V analog AFR output for interface to dyno instrumentationCompact size: 4" L x 2" W x .5" HMade in the U.S.A.
Specs
Type: Wide-Band O2
Units: Kit
Model: WEGO III
Oxygen Sensor Plug Size: 18.00 mm
Product Name: Sensor Kit
Riding Style: Street
Approximate Package Weight & Dimensions
Weight: 1.28
Height: 2
Length: 12.5
Width: 7.75
