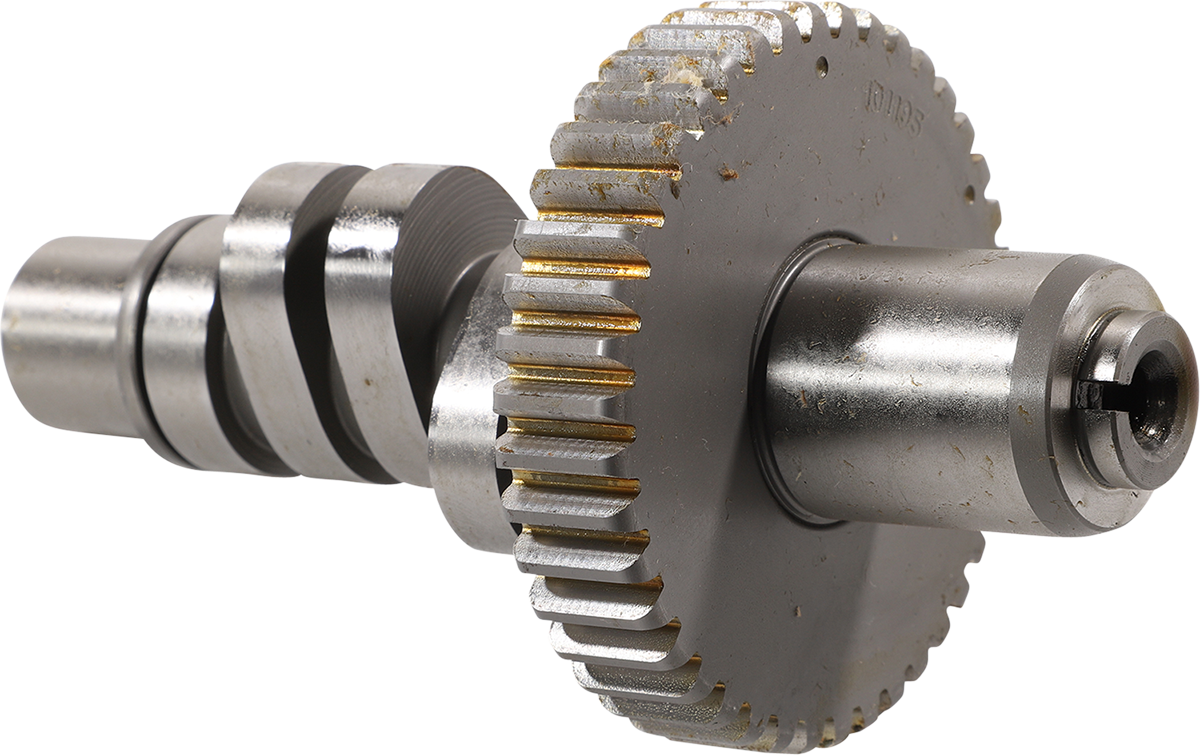

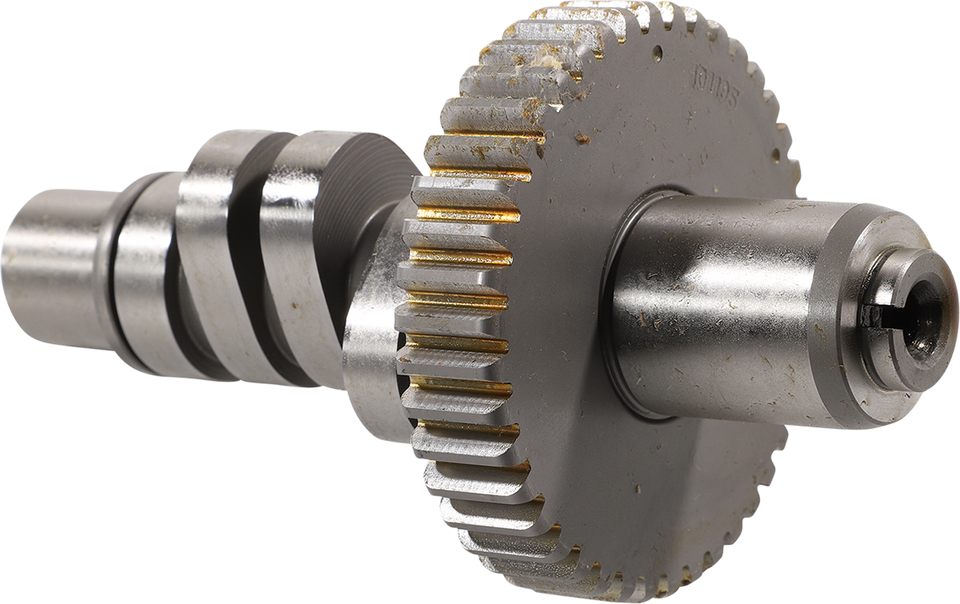

A2 Grind Cam

ANDREWS

A2 Grind Cam

0925-0292

Regular price $242.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1977 Harley-Davidson 1200 Electra Glide FLH
1971 - 1977 Harley-Davidson 1200 Super Glide FX
1970 - 1977 Harley-Davidson Electra Glide FL
1974 - 1977 Harley-Davidson 1200 Super Glide FXE
1977 Harley-Davidson 1200 Low Rider FXS

Features

  • Cam bolts into 66-84 (except 80-81) Big Twin engines with no head work; on 80-81 engines the height of the stock H-D valve guides restricts spring travel (and cam lift) to .430" or less
  • Spring travel and clearance, plus clearance at main bearing boss must be checked on 80 and later models
  • More mid-range and high-end power; idle unaffected

  • Specs

  • Product Name: Cam
  • Riding Style: Street
  • Units: Each
  • Intake Lift at TDC: Shovel: 0.156" Pan: 0.164"
  • Intake Lift: Shovel: 0.450" Pan: 0.470"
  • Application: Exhaust
  • Exhaust Lift: Shovel: 0.450" Pan: 0.470"
  • Grind: A2
  • Application: Intake
  • Exhaust Lift at TDC: Shovel: 0.142" Pan: 0.150"
  • Type: Gear

  • Approximate Package Weight & Dimensions

  • Weight: 1.98
  • Height: 3.26
  • Length: 6.22
  • Width: 3.46
