DESCRIPTION
Fitments
Years
Make
Model
2012 - 2016
Harley-Davidson
Seventy-Two XLV
2006 - 2011
Harley-Davidson
1200 Low EFI XLL
2010 - 2019
Harley-Davidson
Forty-Eight XLX
2014 - 2017
Harley-Davidson
SuperLow 1200 XLT
2002 - 2019
Harley-Davidson
1200 Custom EFI XLC
2011 - 2019
Harley-Davidson
883 SuperLow XLL
2009 - 2019
Harley-Davidson
Iron 883 XLN
2007 - 2012
Harley-Davidson
1200 Nightster XLN
2000 - 2006
Harley-Davidson
1200 Custom XLC
2004 - 2006
Harley-Davidson
883 XL
2006 - 2010
Harley-Davidson
883 Low EFI XLL
2006 - 2008
Harley-Davidson
1200 Roadster EFI XLR
2004 - 2006
Harley-Davidson
1200 Roadster XLR
2002 - 2007
Harley-Davidson
883 Roadster EFI XLR
2002 - 2007
Harley-Davidson
883 Roadster XLR
2005 - 2006
Harley-Davidson
883 Low XLL
2006
Harley-Davidson
1200 Low XLL
2000 - 2006
Harley-Davidson
883 Custom XLC
2000 - 2009
Harley-Davidson
883 Custom EFI XLC
2007 - 2009
Harley-Davidson
883 EFI XL
2007
Harley-Davidson
Sportster 1200 XL 50
2016 - 2019
Harley-Davidson
1200 Roadster XLCX
2000 - 2003
Harley-Davidson
Sportster 1200 XLH
2009 - 2012
Harley-Davidson
Sportster 1200 X XR
2018 - 2019
Harley-Davidson
Iron 1200 XLNS
2002 - 2017
Harley-Davidson
1200 XLCP
2009 - 2012
Harley-Davidson
Sportster 1200 XR
2000 - 2003
Harley-Davidson
883 Hugger XLH
2000 - 2003
Harley-Davidson
Sportster 883 XLH
2000 - 2003
Harley-Davidson
1200 Sport XLS
2018 - 2019
Harley-Davidson
Forty-Eight Special XLXS

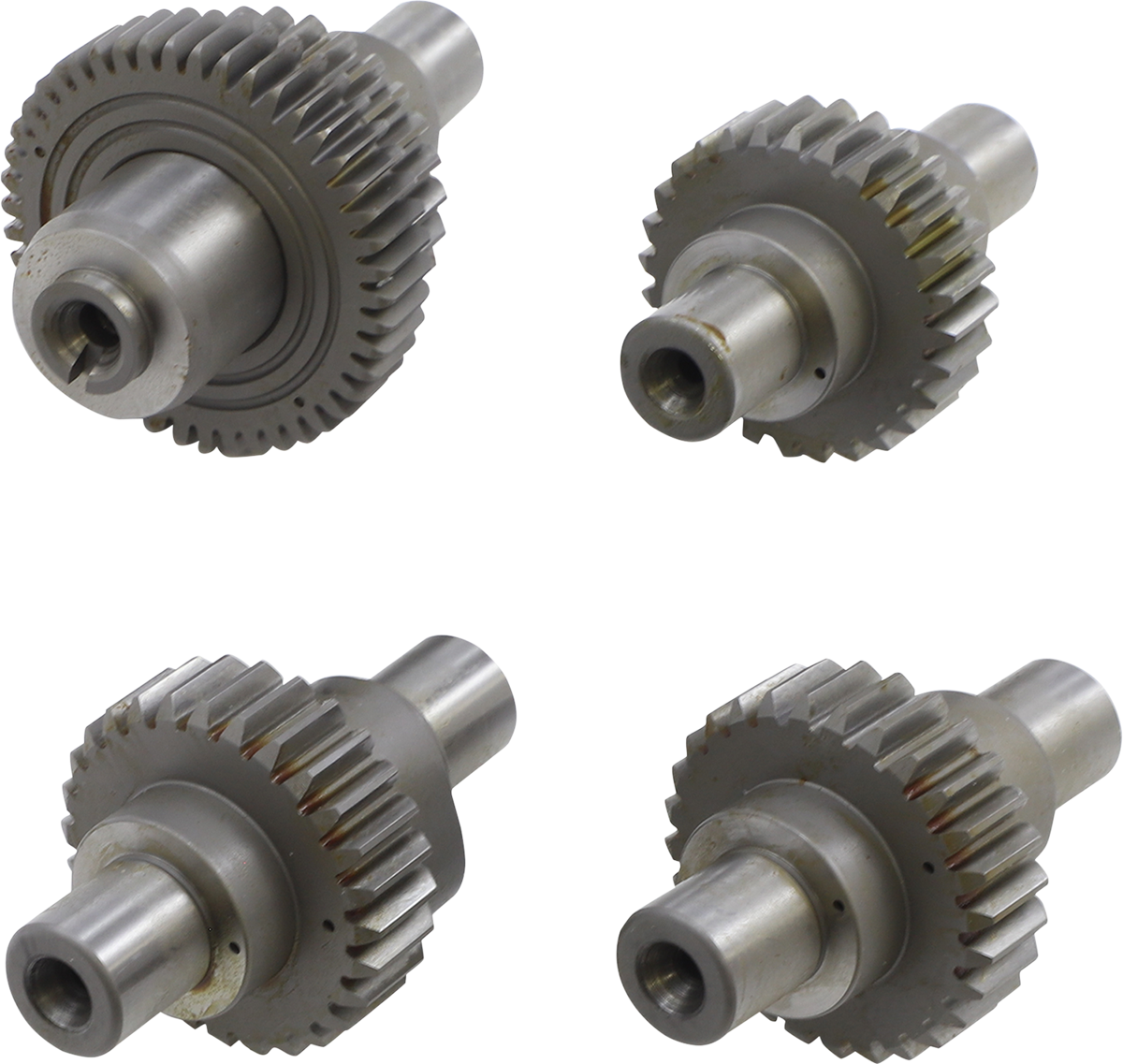

Features Cams run to 6500 rpm with stock hydraulic lifters; recommend solids not be installed Stock base circle sizes allow the use of stock pushrods N3 cams are bolt-in for 05-16 883/1200 engines with stock springs and heads (cams for 04-06 models with more than .465" lift may need different valves, springs and collars) Made in the U.S.A. Specs
Application: Exhaust
Exhaust Close: 11°
Exhaust Open: 43°
Intake Lift: 0.465"
Exhaust Duration: 234°
Exhaust Lift at TDC: 0.134"
Intake Duration: 240°
Intake Lobe Centerline: 98°
Product Name: Cam Kit
Riding Style: Street
Units: 4 Pack
Intake Open: 17°
Application: Intake
Exhaust Lift: 0.482"
Exhaust Lobe Centerline: 106°
Grind: N3
Intake Close: 33°
Intake Lift at TDC: 0.181"
Type: Gear Approximate Package Weight & Dimensions
Weight: 4.31
Height: 3.26
Length: 9.76
Width: 6.92
