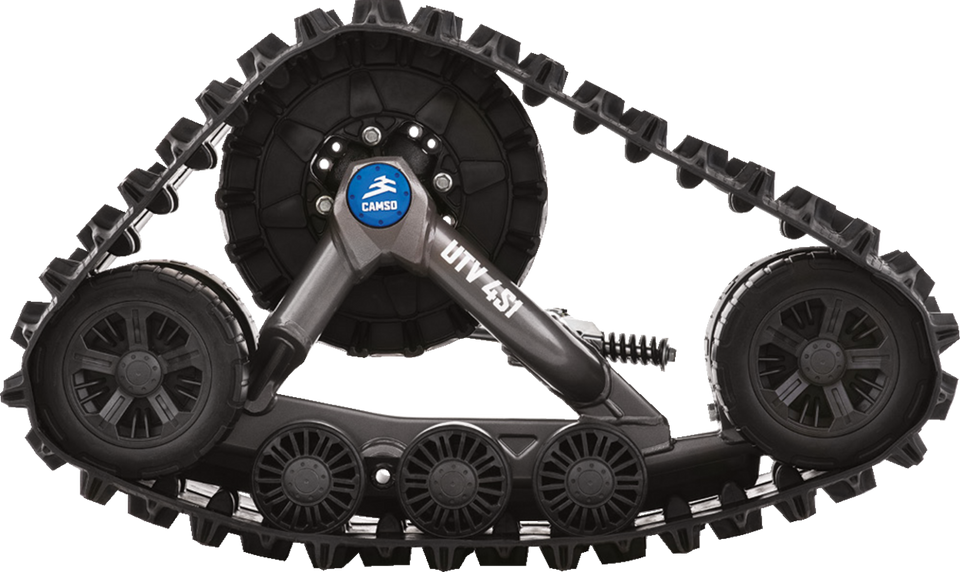

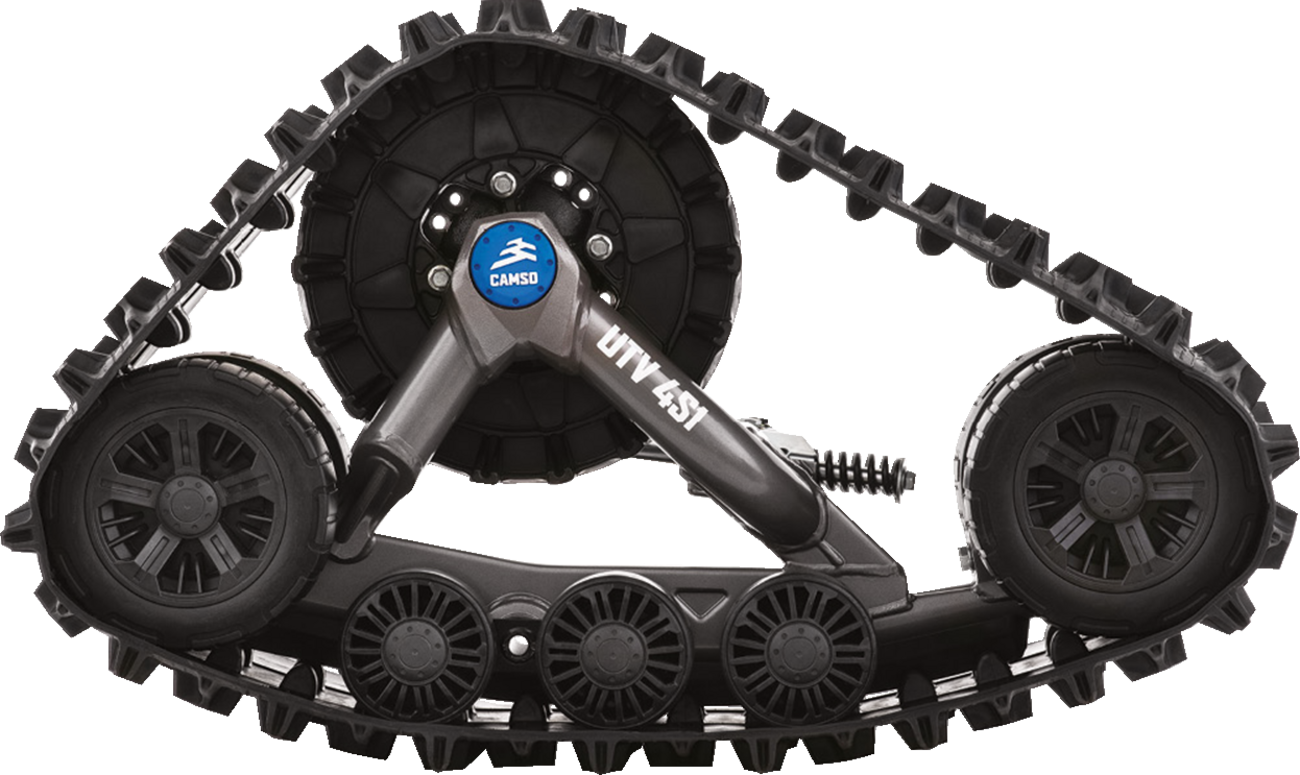

UTV 4S1 Track System
UTV 4S1 Track System
UTV 4S1 Track System

CAMSO

UTV 4S1 Track System

4510-0913

$6,399.00

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2016 - 2022 Yamaha Viking 700 VI Ranch EPS EFI 4x4
2015 - 2022 Yamaha Viking 700 VI EPS EFI 4x4
2014 - 2022 Yamaha Viking 700 EPS 4x4
2018 - 2022 Yamaha Viking 700 Ranch EPS EFI
2014 - 2020 Yamaha Viking 700 4x4
2014 - 2019 Yamaha Viking 700 SE EPS EFI
2015 - 2016 Yamaha Viking 700 VI 4x4
2015 - 2017 Yamaha Viking 700 VI SE EPS EFI 4x4

Video


Features

  • Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible
  • Sturdier and more adjustable tensioner prevents critical part misalignment
  • Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability
  • New anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier
  • Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations

    • Specs

  • Front Height: 25"
  • Front Track Length: 98-1/2"
  • Model: UTV 4S1
  • Rear Track Width: 14"
  • Riding Style: Snow
  • Riding Style: UTV
  • Ground Surface: 1,62 m² (2520 square inch)
  • Product Name: Track System
  • Front Track Width: 12-1/2"
  • Rear Height: 24-11/16"
  • Rear Track Length: 116-11/16"
  • Tooth Count: 15-18
  • Ground Clearance: +5"
  • Lug Height: 1-1/4"
  • Type: Conversion
  • Units: Each

    • Approximate Package Weight & Dimensions

  • Weight: 0.01
  • Height: 0.1
  • Length: 0.1
  • Width: 0.1
