CAMSO

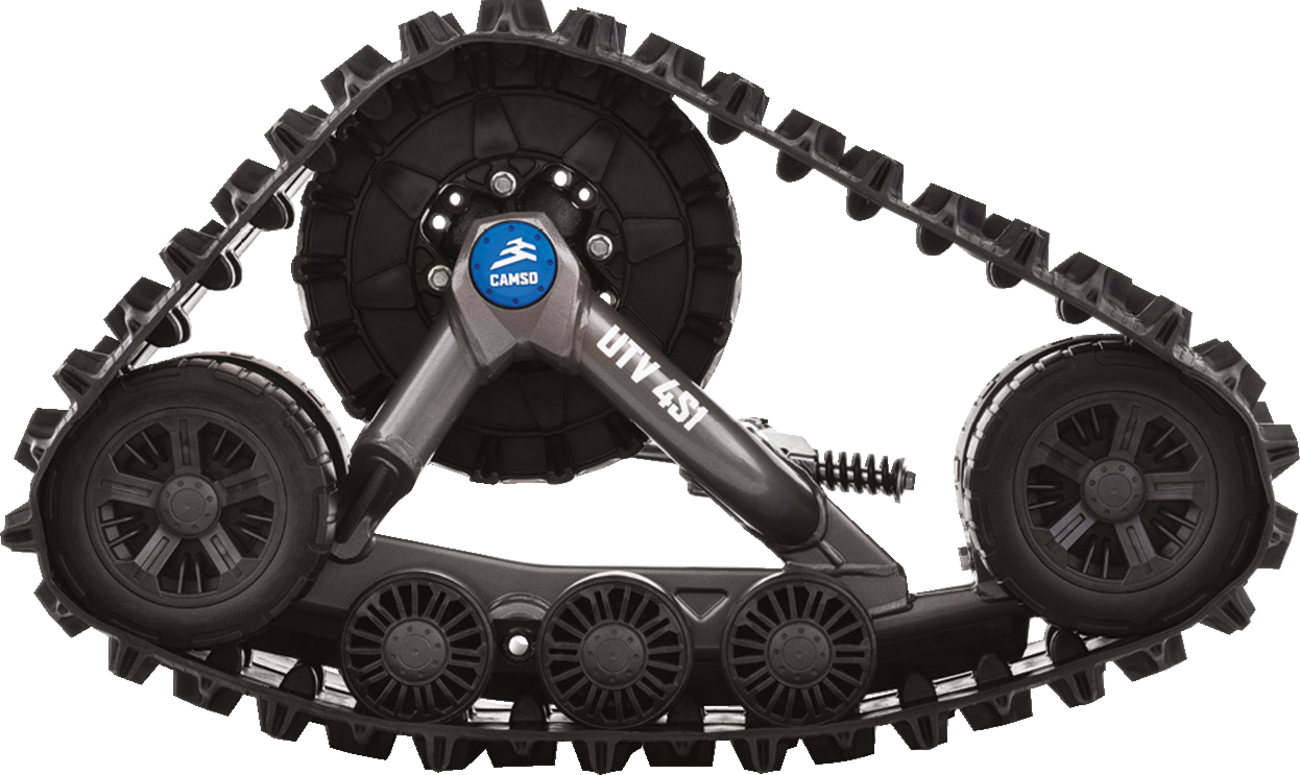

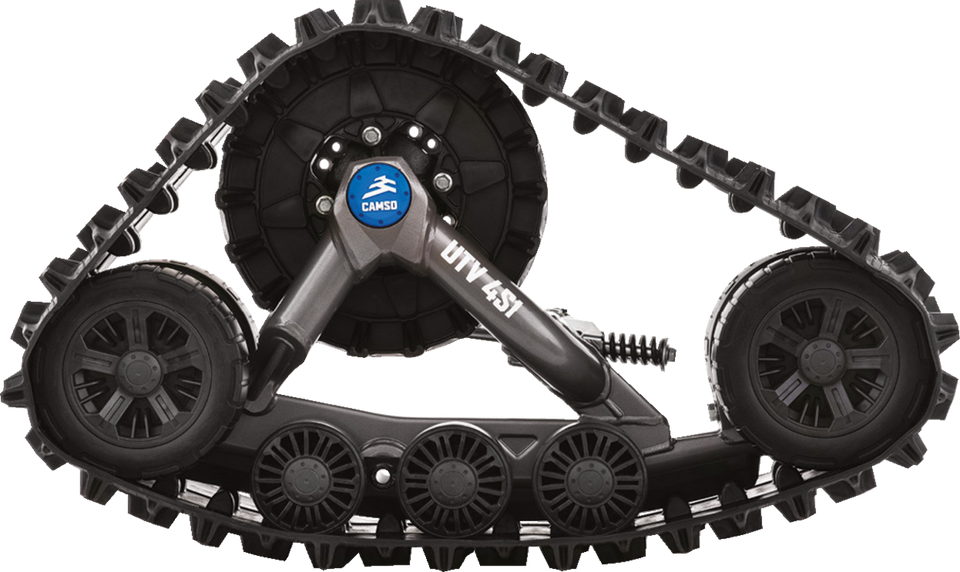

UTV 4S1 Track System

4510-0862

Regular price $6,399.00

Quantity

-+

Ask about this product

DESCRIPTION

Fitments

Years	Make	Model
2011 - 2017	Arctic Cat	Prowler 700 HDX XT EPS 4x4
2009 - 2017	Arctic Cat	Prowler 1000 XT 4x4
2009 - 2017	Arctic Cat	Prowler 1000 XTZ 4x4
2011 - 2017	Arctic Cat	Prowler 700 HDX LTD 4x4
2009 - 2017	Arctic Cat	Prowler 1000 XT EPS 4x4
2016	Arctic Cat	H1 700 Prowler XT EPS

Video

Features

Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible

Sturdier and more adjustable tensioner prevents critical part misalignment

Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability

New anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier

Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations

Specs

Ground Surface: 1,62 m² (2520 square inch)

Rear Height: 24-11/16"

Tooth Count: 15-18

Front Track Length: 98-1/2"

Lug Height: 1-1/4"

Type: Conversion

Units: Each

Front Height: 25"

Ground Clearance: +5"

Model: UTV 4S1

Rear Track Length: 116-11/16"

Rear Track Width: 14"

Riding Style: Snow

Riding Style: UTV

Front Track Width: 12-1/2"

Product Name: Track System

Approximate Package Weight & Dimensions

Weight: 0.01

Height: 0.1

Length: 0.1

Width: 0.1
