CAMSO

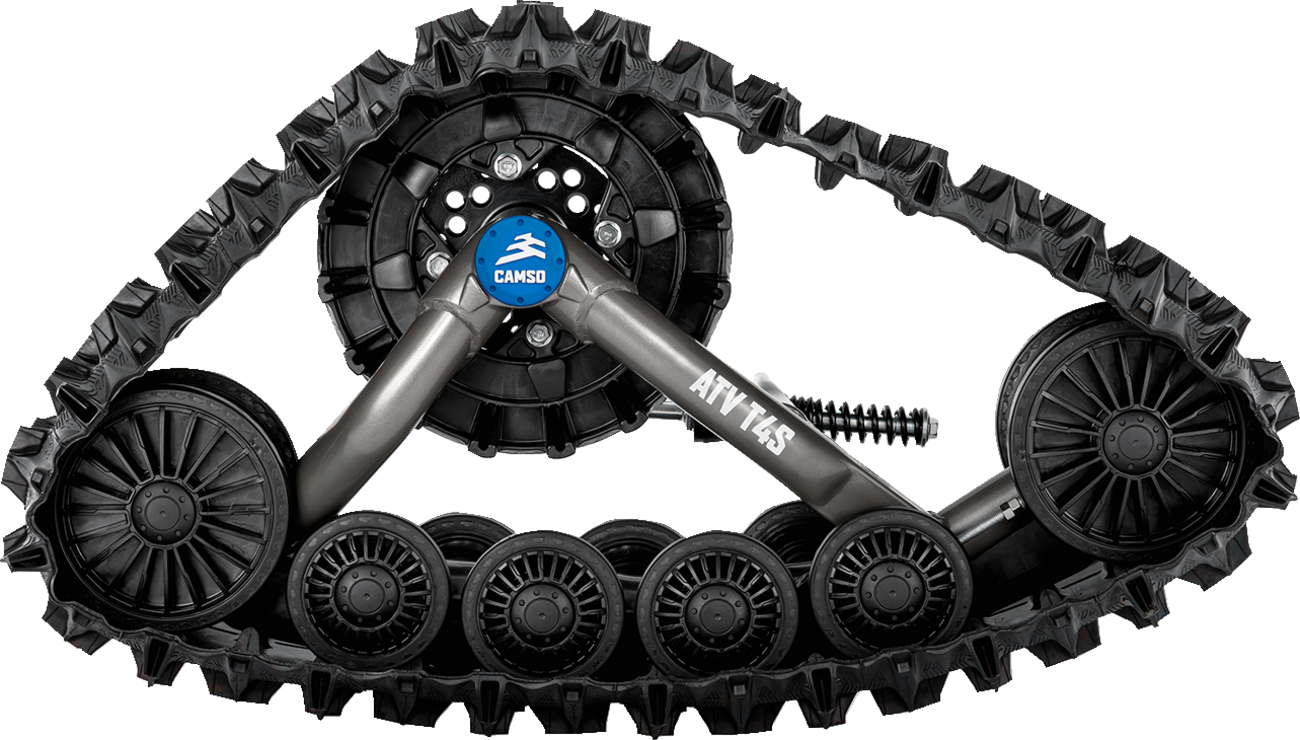

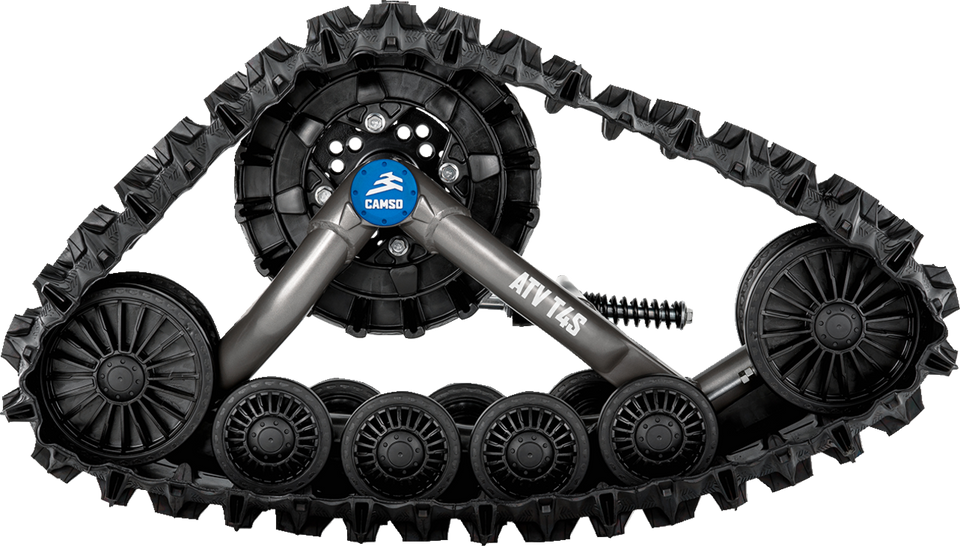

ATV T4S Track System - Yamaha

4510-0723

Regular price $4,469.00

Quantity

-+

Ask about this product

DESCRIPTION

Fitments

Years	Make	Model
2016 - 2022	Yamaha	YFM 700 Grizzly EPS 4x4
2020 - 2022	Yamaha	YFM 700 Grizzly EPS XT-R 4x4
2016 - 2022	Yamaha	YFM 700 Grizzly EPS SE 4x4
2014 - 2015	Yamaha	YFM 700 Grizzly AT FI 4x4
2014 - 2015	Yamaha	YFM 700 FG Grizzly AT FI EPS SE 4x4
2016 - 2018	Yamaha	YFM 700 Grizzly EPS LE 4x4
2014 - 2015	Yamaha	YFM 700 FGP Grizzly AT FI EPS 4x4
2016	Yamaha	YFM 700 Grizzly 4x4

Video

Features

Increased steering stability and better impact absorption with two spring rates, soft for steering and stiff for impacts

Gearing matched to engine power

Front and rear factory preset spring and rubber cuts adjustment time by 50%

Stable, more precise steering for pleasant long-distance riding and long work hours

Flextrack™ technology features flexible sides and a slight curve toward the inside, they provide a more comfortable ride than traditional flat tracks and reduced splatter from mud or snow

Specs

Front Track Length: 93-3/8"

Front Track Width: 11-1/2"

Ground Clearance: +3"

Model: ATV T4S

Product Name: Track System

Rear Track Width: 12-1/2"

Riding Style: Snow

Tooth Count: 15-18

Front Height: 23-3/4"

Lug Height: 1-1/4"

Rear Track Length: 98-1/2"

Ground Surface: 1,30 m² (2000 square inch)

Rear Height: 23-1/4"

Riding Style: ATV

Units: Each

Approximate Package Weight & Dimensions

Weight: 0.01

Height: 0.1

Length: 0.1

Width: 0.1

CAMSO
